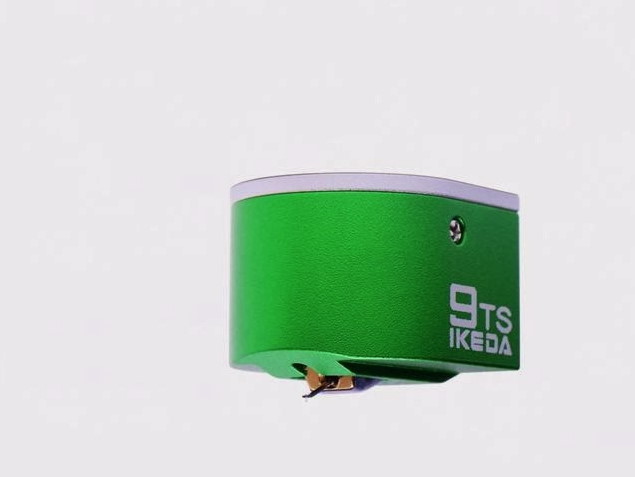

Ikeda 9TS
與9系列的聲音特色一樣，不過0.35mVrms的輸出比9TT高出一倍，比較容易搭配，價格也稍低(USD 2,800)



Tonally it has the same musicality as the other MC cartridges in the "9"-family. No compromises are made also during processing. The 9TS 0, 35mV is about twice as high output voltage compared to the 9TT so that it can be operated without any problems on cheaper phono preamps.

Output Voltage: 0.35mVrms (1kHz 35.4mm/sec., at 45°peak)
Coil Impedance: 6.0 ohms (1kHz)
Appropriate Stylus Force: 2.0grams ±0.2 grams
Frequency Response: 10Hz ～ 45kHz
Channel Separation: over 27dB (1kHz)
Channel Balance: within 1.0dB (1kHz)
Stylus Chip: Oval-shaped solid Diamond
Cantilever: Double layered duralumin pipe.
Weight: 10 grams
Compliance: 7 x 10-6cm/dyne

Ikeda SAI
來自傳奇的9MUSAM，全新毫不妥協的設計，輸出較原來增加，為0.3 mVrms



The "SAI", is the uncompromising advancement of the legendary "9MUSAM" with completely brand new pickup system. Engineers from IKEDA succeeded to transfer the tonal qualities of the 9MUSAM without compromising. The output voltage could be increased through further development in the area of the coil drive to 0, a channel equal 0, 5dB 30mV! The cantilever consists of "Boron" and the diamond is "Micro-Ridge."

MC cartridge: Universal type dedicated to tonearm.
Output Voltage: 0.3 mVrms (1kHz 35.4mm/sec., at 45°peak)
Coil Impedance: 2.5 ohms (1kHz)
Appropriate Stylus Force: 2.0grams ±0.2 grams
Frequency Response: 10Hz ～ 45kHz
Channel Separation: over 30dB (1kHz)
Channel Balance: within 0.5dB (1kHz)
Stylus Chip: Micro-ridge solid Diamond
Cantilever: made of Boron.
Weight: 30 grams
Compliance: 7 x 10-6cm/dyne
