聊聊臺灣沒代理的品牌

[Leo Yeh]

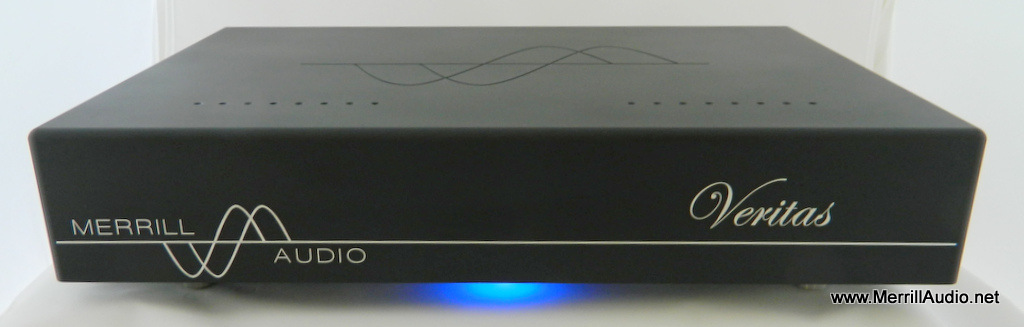

Merrill Audio Veritas Mono Power Amplifier





$9000 /pr

The amplifier modules are based on the Hypex Ncore1200 engineered by Merrill Audio with attention to detail, LITZ wires, Synergistic Research Tunneling Fuses, Cardas Rhodium plated speaker posts and silver audio pins.

Purest Litz copper wire from Cardas is used to give clear, smooth frequency response and sound. Power custom was custom developed with Triode Wire Labs to provide the fastest speed and best soundstage.

The large billet aluminum chassis has isolated chambers for the power supply and amplifier boards and well as separated by distance for the lowest noise and best sound stage. Patented speaker posts are spaced for easy use with large speaker cables.

Specifications
400 Watts at 8 ohms
700 Watts at 4 ohms
1,200 Watts at 2 Ohms
100k Ohms input impedance
0.004% THD
17” x 12” x 3” without footers
35 pounds

Merrill Audio

[Leo Yeh]

美式問答又來了...............

Questions for Trade-up

• What equipment is eligible?
  Any equipment is eligible as long as it is not toxic or fogs a mirror.
• How long before I get my VERITAS Monoblock Power Amps.
  2 days for the US. A little unknown for the rest of the world due to local customs. Usually in 1-2 weeks. Assuming the VERITAS Monoblocks are in stock. Order early!
• What will my spouse say?
  What a great deal!
• Can I get more then 2 Monoblocks under this program?
  You are limited to 100 Monoblocks per year.
• Can I get difference colors.
  Non-stock colors will take 4-6 weeks to get the color of your choice.
• What if my equipment is not working, can I trade-up.
  We are very sorry to hear that and you should do the trade up fast so you can listen to the VERITAS and get your system working again.
• Can I trade-up 2 or more pieces of equipment?
  Yes, but make sure you have some left.

[Leo Yeh]

ALEF

"Nobody builds electronics anymore like ALEF!"
Tim de Paravicini at Munich Hi-End Show 2010

The highest "State-of-the-Art" Amplifiers & Linestages...from Italy!




ALEF "v2" models

New ALEF "v2" models that re-sets a new world reference paradigm in sound, musicality & technology wrapped in new refined aesthetics!

"Duetto" Stereo Amplifier
"Solista" Mono Amplifier
"Orchestra" Integrated - "v2" for an even higher world reference

	Orchestra Integrated	Duetto Stereo	Solista Monoblock
	Dual-Mono	Dual-Mono	Mono
Circuit Bandwidth	DC-6Mhz	DC-6Mhz	DC-6Mhz
Power (Minimum) @ 8Ω	190 w/ch	190 w/ch	190 w/ch
Real Life Power @ 8Ω	900 w/ch	900 w/ch	900 w/ch
Continuous Power @ 8Ω	600 w/ch	600 w/ch	600 w/ch
Peak Power @ 8Ω	10k w/ch	10k w/ch	10k w/ch
Rise Time	0.2µs	0.2µs	0.2µs
Slew Rate	180V/µs	180V/µs	180V/µs
Power Supply (VA)	2@680 VA	2@950 VA	1900 VA

ALEF Models Standard Features
•6N Silver internal wiring
•Silver RCA connectors
•Silver-over-copper "Mundorf" binding posts

Orchestra Integrated
•"Leader" 6Mhz active Dual-Mono Linestage
•"Duetto" 6Mhz Dual-Mono Stereo Amplifier
•Ultra precise 64-step resistor attenuator
•All in 1 chassis

Power Supply Transformer Tech Features
● “Planted” in thick quartz powder for noise shielding/vibration control
● “Drowned” in resin in a very expensive mu-metal shielded enclosure
● All magnetic radiation and mechanical vibrations 100% suppressed




NEW
State-of-the-Art
ALEF 6Mhz Linestage/Preamp!

Same size/aesthetics as ALEF "Orchestra" 6Mhz Integrated
"the world's best integrated amplifier"

•DC-6Mhz Bandwidth
•True Dual Mono
•Pure Class-A
•Ultra precise 64-step resistor attenuator
•Remote controlled
•Optional Battery Power Supply

---

coming soon...
An extraordinary 24/192 DAC based on a unique design
that will establish THE reference in DAC designs!

...and new aesthetic options including high gloss lacquers

---

The ALEF electronics are simply the finest I have ever heard...period!

The designer has created circuits that are flat & stable to 6Mhz...and not requiring special cables or networks.

Created & crafted in Italy with ultra high construction quality using the finest quality components to insure the highest level of performance and a long, trouble-free life.

Sonics?
Think 'Soulution'...but executed at a MUCH higher level!

Sonically, the transparent purity of the finest OTL amplifiers but lightning fast with a greater top end extension, a more open sound, deeper & tighter bottom octaves, more effortlessly explosive dynamics and an amazing lifelike presentation of tonal qualities.

The ALEF series linestage, amplifiers, integrated & phono incorporate 6Mhz circuits.

These are absolutely the most amazing electronics I have ever heard including mega priced $350k monoamp designs!

ALEF products
∧ Duet-SE stereo amplifier
∧ Soloist mono amplifier
∧ Orchestra integrated amplifier
∧ Director linestage
∧ Leader linestage
∧ Director phono w/battery Power Supply

---

ALEF "Orchestra" Integrated Amplifier

Simply...State-Of-The-Art!
Based on the award winning "Duet-SE" stereo amplifier
+ "Leader" active linestage in 1 chassis

---

- ALEF Duet-SE amplifier -

Based on the extraordinary & state-of-the-art DC-6Mhz design
has earned the prestigious Haute Fidelite's very rare
"Reference" award!




Rated “5 stars” (highest) on ALL sonic attributes!







Excerpts (translated)
Dynamics: "The Alef communicates tremendous energy on transients. The magnitude when listening to the bass line gives a real sense of presence in the room. The chords are clear and precise, the rhythm is accurately articulated and one feels no bass volume exaggeration meaning the ALEF is sovereign and in control of the lowest octaves."
"On drum keystrokes or on timbale impacts, we feel precisely and distinctly the emitted sound impulse of every attack followed by how each note ripples the drumskin. The dynamics of this amplifier is distributed on the audio spectrum in a very linear & balanced way with no part of the spectrum slighted or exaggerated. The Alef is incisive and powerful."

Soundstaging: "High level of precision of spatial soundstaging is a part of this Italian Dual-Mono stereo block. Although it has such extraordinary qualities of dynamics without restraints, one could not expect same high level of signal resolution and equally high level of soundstaging. It can virtually create a space of holographic illusion and the Alef creates a portrayal of live singing and melodic reproduction"


Tonality/Transparency: “This amplifier offers a very pure listening, very neutral listening experience due in part to the ultrawide bandwidth – on paper and also subjectively. Very powerful male voice & delicate female voice often suggest that of a triode - sometimes approaching the absolute very best with accurate voice without paralysis.”

Conclusion: "Wonderful exercise of style this amplifier Alef Duet SE (by Delta Sigma). Starting from a proprietary circuitry that can be tuned, if necessary to the need and wishes of each owner, the manufacturer propose a device capable to satisfy all situations, offering a clear, precise and defined reproduction from the extreme bass to the extreme high."

"The amplifier is able to play loud, very loud, without any audible sign of stress, or to distil a delicate melody at low volume, in class A. It can do almost everything, and does it well. The price is relatively high, but it benefits of custom, handmade manufacturing and of “sur mesure” concept - unique in the world."


Simply, the best sounding amplifier available…
Highest level of technology
Unsurpassed levels of transparency, dynamics & resolution
Deeper & better controlled bass
Extraordinary “Soul” that makes others sound soulless.

Nothing else compares!

---

● Highly biased to Class-A
● Key components are hand shielded with a copper foil and grounded
● Printed circuit board tracings >4x thicker than currently available
● Very high power reserve is provided by many small fast capacitors wired in parallel and positioned as close as possible to active device
ALEF

"Nobody builds electronics anymore like ALEF!"
Tim de Paravicini at Munich Hi-End Show 2010

The highest "State-of-the-Art" Amplifiers & Linestages...from Italy!




ALEF "v2" models

New ALEF "v2" models that re-sets a new world reference paradigm in sound, musicality & technology wrapped in new refined aesthetics!

"Duetto" Stereo Amplifier
"Solista" Mono Amplifier
"Orchestra" Integrated - "v2" for an even higher world reference

	Orchestra Integrated	Duetto Stereo	Solista Monoblock
	Dual-Mono	Dual-Mono	Mono
Circuit Bandwidth	DC-6Mhz	DC-6Mhz	DC-6Mhz
Power (Minimum) @ 8Ω	190 w/ch	190 w/ch	190 w/ch
Real Life Power @ 8Ω	900 w/ch	900 w/ch	900 w/ch
Continuous Power @ 8Ω	600 w/ch	600 w/ch	600 w/ch
Peak Power @ 8Ω	10k w/ch	10k w/ch	10k w/ch
Rise Time	0.2µs	0.2µs	0.2µs
Slew Rate	180V/µs	180V/µs	180V/µs
Power Supply (VA)	2@680 VA	2@950 VA	1900 VA

ALEF Models Standard Features
•6N Silver internal wiring
•Silver RCA connectors
•Silver-over-copper "Mundorf" binding posts

Orchestra Integrated
•"Leader" 6Mhz active Dual-Mono Linestage
•"Duetto" 6Mhz Dual-Mono Stereo Amplifier
•Ultra precise 64-step resistor attenuator
•All in 1 chassis

Power Supply Transformer Tech Features
● “Planted” in thick quartz powder for noise shielding/vibration control
● “Drowned” in resin in a very expensive mu-metal shielded enclosure
● All magnetic radiation and mechanical vibrations 100% suppressed




NEW
State-of-the-Art
ALEF 6Mhz Linestage/Preamp!

Same size/aesthetics as ALEF "Orchestra" 6Mhz Integrated
"the world's best integrated amplifier"

•DC-6Mhz Bandwidth
•True Dual Mono
•Pure Class-A
•Ultra precise 64-step resistor attenuator
•Remote controlled
•Optional Battery Power Supply

---

coming soon...
An extraordinary 24/192 DAC based on a unique design
that will establish THE reference in DAC designs!

...and new aesthetic options including high gloss lacquers

---

The ALEF electronics are simply the finest I have ever heard...period!

The designer has created circuits that are flat & stable to 6Mhz...and not requiring special cables or networks.

Created & crafted in Italy with ultra high construction quality using the finest quality components to insure the highest level of performance and a long, trouble-free life.

Sonics?
Think 'Soulution'...but executed at a MUCH higher level!

Sonically, the transparent purity of the finest OTL amplifiers but lightning fast with a greater top end extension, a more open sound, deeper & tighter bottom octaves, more effortlessly explosive dynamics and an amazing lifelike presentation of tonal qualities.

The ALEF series linestage, amplifiers, integrated & phono incorporate 6Mhz circuits.

These are absolutely the most amazing electronics I have ever heard including mega priced $350k monoamp designs!

ALEF products
∧ Duet-SE stereo amplifier
∧ Soloist mono amplifier
∧ Orchestra integrated amplifier
∧ Director linestage
∧ Leader linestage
∧ Director phono w/battery Power Supply

---

ALEF "Orchestra" Integrated Amplifier

Simply...State-Of-The-Art!
Based on the award winning "Duet-SE" stereo amplifier
+ "Leader" active linestage in 1 chassis

---

- ALEF Duet-SE amplifier -

Based on the extraordinary & state-of-the-art DC-6Mhz design
has earned the prestigious Haute Fidelite's very rare
"Reference" award!




Rated “5 stars” (highest) on ALL sonic attributes!







Excerpts (translated)
Dynamics: "The Alef communicates tremendous energy on transients. The magnitude when listening to the bass line gives a real sense of presence in the room. The chords are clear and precise, the rhythm is accurately articulated and one feels no bass volume exaggeration meaning the ALEF is sovereign and in control of the lowest octaves."
"On drum keystrokes or on timbale impacts, we feel precisely and distinctly the emitted sound impulse of every attack followed by how each note ripples the drumskin. The dynamics of this amplifier is distributed on the audio spectrum in a very linear & balanced way with no part of the spectrum slighted or exaggerated. The Alef is incisive and powerful."

Soundstaging: "High level of precision of spatial soundstaging is a part of this Italian Dual-Mono stereo block. Although it has such extraordinary qualities of dynamics without restraints, one could not expect same high level of signal resolution and equally high level of soundstaging. It can virtually create a space of holographic illusion and the Alef creates a portrayal of live singing and melodic reproduction"


Tonality/Transparency: “This amplifier offers a very pure listening, very neutral listening experience due in part to the ultrawide bandwidth – on paper and also subjectively. Very powerful male voice & delicate female voice often suggest that of a triode - sometimes approaching the absolute very best with accurate voice without paralysis.”

Conclusion: "Wonderful exercise of style this amplifier Alef Duet SE (by Delta Sigma). Starting from a proprietary circuitry that can be tuned, if necessary to the need and wishes of each owner, the manufacturer propose a device capable to satisfy all situations, offering a clear, precise and defined reproduction from the extreme bass to the extreme high."

"The amplifier is able to play loud, very loud, without any audible sign of stress, or to distil a delicate melody at low volume, in class A. It can do almost everything, and does it well. The price is relatively high, but it benefits of custom, handmade manufacturing and of “sur mesure” concept - unique in the world."


Simply, the best sounding amplifier available…
Highest level of technology
Unsurpassed levels of transparency, dynamics & resolution
Deeper & better controlled bass
Extraordinary “Soul” that makes others sound soulless.

Nothing else compares!

---

● Highly biased to Class-A
● Key components are hand shielded with a copper foil and grounded
● Printed circuit board tracings >4x thicker than currently available
● Very high power reserve is provided by many small fast capacitors wired in parallel and positioned as close as possible to active device

[Leo Yeh]

http://www.taga-audio.com

[Leo Yeh]

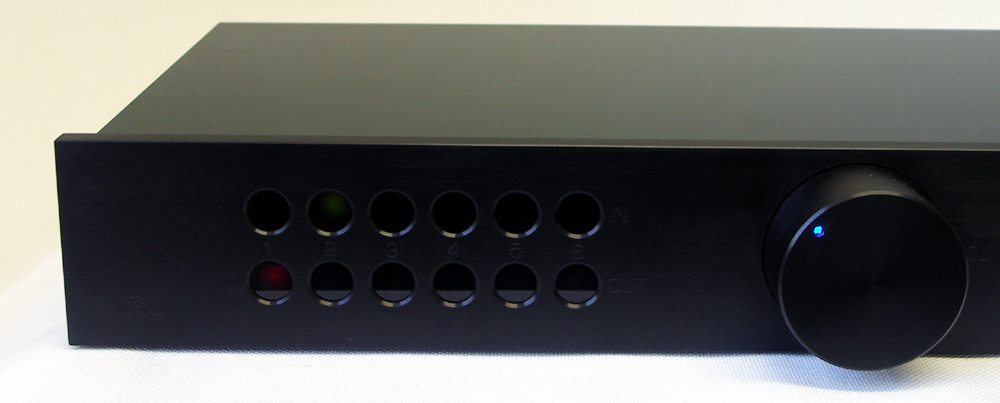

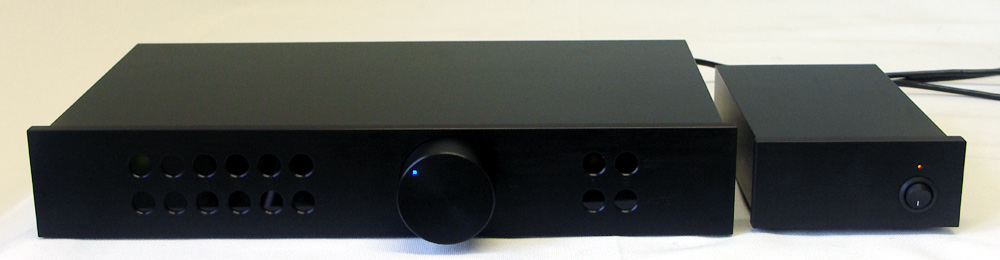

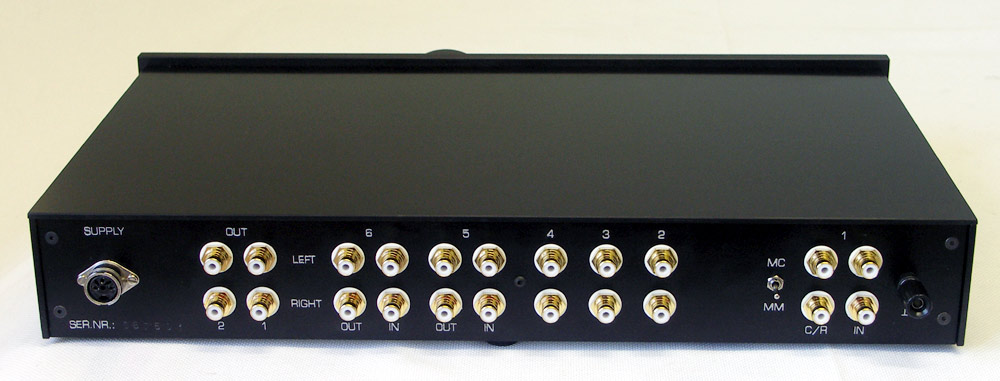

Stst Agmen II Modular Preamplifier











Prices
Line version - €4200
With 1 MM and 1 MC module - €5600

The sound is just exceptional for the price, and it has 10 years warranty.

[Leo Yeh]

ZODIAC:

Zodiac speakercable

Zodiac interconnect terminated with Oyaide RCA connectors

http://www.dyrholmaudio.com/Cables.htm#Prisliste

[Leo Yeh]

http://www.amaudio.it

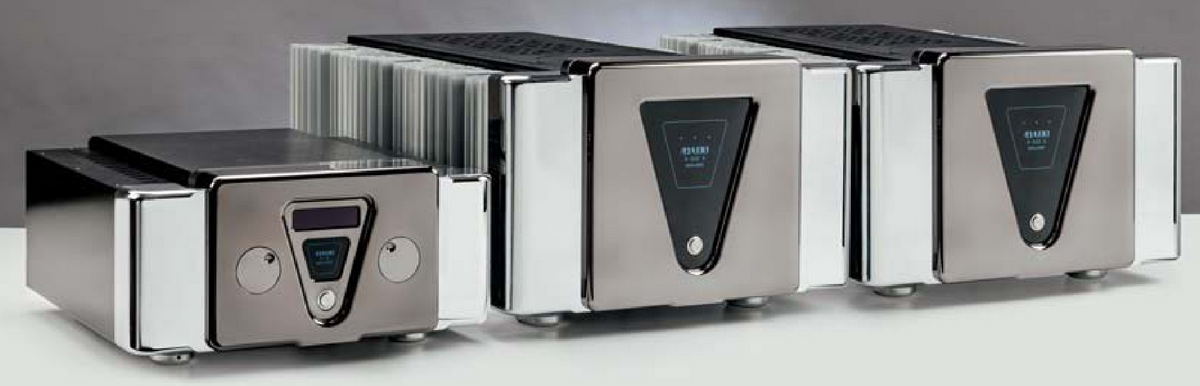

AM Audio P-1X and A-300X Excellence













P-1X - €28250

R2R ladder dac volume control.

Specs
Input impedance - 22 k
Output impedance - 56 ohm
S/N - 106dB Aw
Freq. response - 3Hz-1,2MHz
Output voltage - 48V
Size BxHxD - 44x22x43,5cm
Weight - 45kg

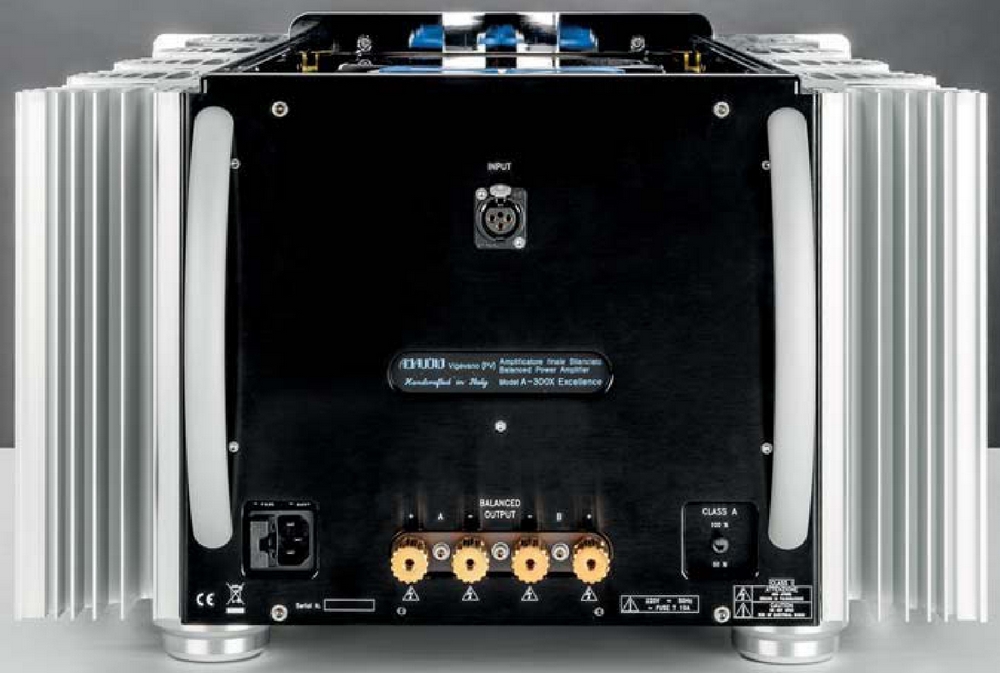

A-300X - €58500 /pr

Specs
Power output 8/4/2 ohm - 300/600/1000 watt class A
50% or 100% class A
Distortion - 0,65% at 1kHz 300 watt
Freq response - 2Hz-180kHz
Input impedance - 208 k
S/N - 119dB Aw
Size BxHxD - 50x33x74cm
Weight - 136kg each

[Leo Yeh]

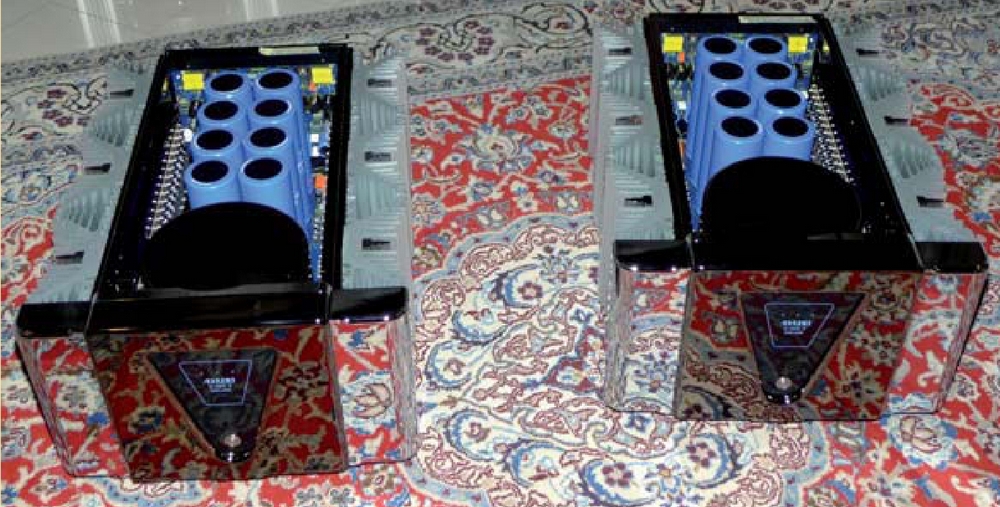

AM Audio A-200 Reference S2 Mono Amplifier









€11500 /pr

The circuitry is based on FET's and output stage uses 36 Mosfet's pr channel.

Capacitors - 450,000 uF pr channel.
Transformers - 2x650VA encapsulated in resin, in one container separated from the chassis using 7 vibration dampers.

Specs
Power output 8/4/2 ohm - 200/380/740 watt class A
Output Current - 150 A peak
50% or 100% class A
Distortion - 0,2% at 1kHz 200 watt
Freq response - 3Hz-600kHz
Input impedance - 82 k
S/N - 121dB Aw
Size BxHxD - 47x29x62cm
Weight - 82kg
Warranty - 5 years

Because of direct sales from the factory and other factors, expect to pay almost four times the price for other products with the same performance.

[Leo Yeh]

AM Audio AM - Reference Preamplifier












€9350

AM like AMX use only two active components pr channel - voltage gain and low impedance output. Components used are Mosfet 2SK214 and 2SJ77 from Hitachi.

Capacitors - total 250,000 uF.
Transformers - 2x50VA encapsulated in resin.

Specs
Input impedance unbalanced/balanced- 8,5/16,5 k
Output impedance unbalanced/balanced - 53/106 ohm
S/N - 106dB Aw
Freq. response - 3Hz-1,5MHz
Output voltage unbalanced/balanced - 24/48V
Size BxHxD - 44x8x36cm
Weight - 22kg
Warranty - 10 years

Because of direct sales from the factory and other factors, expect to pay almost four times the price for other products with the same performance.

[Leo Yeh]

http://www.stillpoints.us
