magico最新旗艦：magico Q7

[Leo Yeh]

在Q5、Q3、Q1之後，magico推出Q系列的旗艦：Q7，訂價約為USD 165,000/對，為4音路5單體設計，效率94ddB，使用的單體驅動系統釹磁鐵強度為產業標準的10倍以上，雙12"的低音與10"的中低音使用奈米科技錐盆技術，超過100個鋁、銅、不鏽鋼的原件使用超過650的螺絲或扭扣等方式組合而成，單隻重達340KG。







PDF

Driver complement:
1 x 1" MB7 Tweeter
1 x 6" MG70 Midrange
1 x 10" MG107 Midbass
2 x 12" MG1207 Bass
Sensitivity: 94dB
Impedance: 4 Ohms
Frequency Response: 20 Hz – 50 kHz
Recommended Power: 50 – 1200 Watts
Dimensions: 60"H x 32"D x 15"W (152cm x 81cm x 38cm)
Weight: 750lbs. (340kg)

www.magico.net

[hidoson]

單隻重量340KG，果真是旗艦，重量級的~~！

[dandy]

Q7賣到這種價位,會買的豪客除了聲音為外,我想外型也是決對考慮的因素,
這對在外型並不是如wilson audio 新Alexandria XLF
還是rockport altairII,YG那麼有設計感

[將軍]

Q7賣到這種價位,會買的豪客除了聲音為外,我想外型也是決對考慮的因素,
這對在外型並不是如wilson audio 新Alexandria XLF
還是rockport altairII,YG那麼有設計感

果真是變的偷懶了!!
還是之前的M6有賣相!!

[dandy]

同意!!+1:):)

[Leo Yeh]

內在可是很用心的啦~~~

DECEMBER 26, 2011—BERKELEY, CALIFORNIA USA- The journey to create the finest unlimited class loudspeaker in the world has stretched thevery boundaries of what is technically and creatively possible in loudspeaker design. Expanding the performance envelope of the paradigm shifting Q-Series has been an exponentially challenging task, setting even higher benchmarks than those achieved by our groundbreaking Q5. Our challenge at the outset was to blend radically new and cutting-edge technologies into a reference loudspeaker, which from the faintest whisper to the most eardeafening
sound-pressure levels maintains a yet unheard degree of composure and fidelity.

This challenge has been met. The result is a cost-no-object loudspeaker of limitless dynamics, high efficiency, extreme extension and redefined transparency. Everything we have expected and something we could have never imagined. Magico is proud to unveil the Q7.

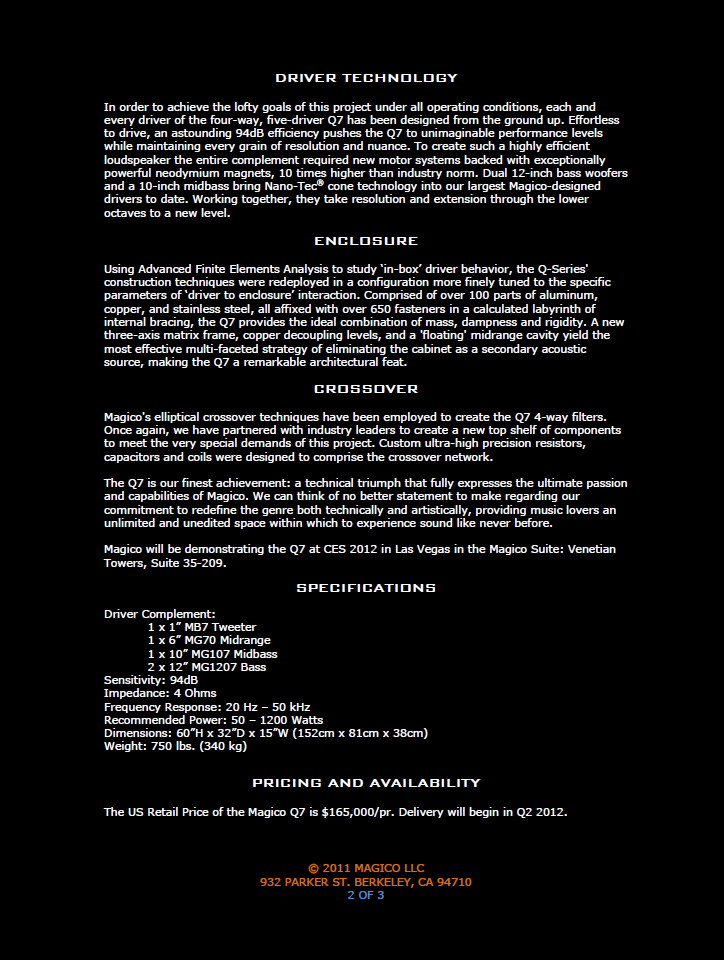

DRIVER TECHNOLOGY

In order to achieve the lofty goals of this project under all operating conditions, each and every driver of the four-way, five-driver Q7 has been designed from the ground up. Effortless to drive, an astounding 94dB efficiency pushes the Q7 to unimaginable performance levels while maintaining every grain of resolution and nuance. To create such a highly efficient loudspeaker the entire complement required new motor systems backed with exceptionally powerful neodymium magnets, 10 times higher than industry norm. Dual 12-inch bass woofers and a 10-inch midbass bring Nano-Tec® cone technology into our largest Magico-designed drivers to date. Working together, they take resolution and extension through the lower octaves to a new level.


ENCLOSURE

Using Advanced Finite Elements Analysis to study ‘in-box’ driver behavior, the Q-Series' construction techniques were redeployed in a configuration more finely tuned to the specific parameters of ‘driver to enclosure’ interaction. Comprised of over 100 parts of aluminum, copper, and stainless steel, all affixed with over 650 fasteners in a calculated labyrinth of internal bracing, the Q7 provides the ideal combination of mass, dampness and rigidity. A new three-axis matrix frame, copper decoupling levels, and a 'floating' midrange cavity yield the most effective multi-faceted strategy of eliminating the cabinet as a secondary acoustic source, making the Q7 a remarkable architectural feat.


CROSSOVER

Magico's elliptical crossover techniques have been employed to create the Q7 4-way filters. Once again, we have partnered with industry leaders to create a new top shelf of components to meet the very special demands of this project. Custom ultra-high precision resistors, capacitors and coils were designed to comprise the crossover network.

The Q7 is our finest achievement: a technical triumph that fully expresses the ultimate passion and capabilities of Magico. We can think of no better statement to make regarding our commitment to redefine the genre both technically and artistically, providing music lovers an unlimited and unedited space within which to experience sound like never before.

Magico will be demonstrating the Q7 at CES 2012 in Las Vegas in the Magico Suite: Venetian Towers, Suite 35-209.

Internal Framework of Magico Q7
SPECIFICATIONS

Driver Complement:

1 x 1” MB7 Tweeter
1 x 6” MG70 Midrange
1 x 10” MG107 Midbass
2 x 12” MG1207 Bass

Sensitivity: 94dB
Impedance: 4 Ohms
Frequency Response: 20 Hz – 50 kHz
Recommended Power: 50 – 1200 Watts
Dimensions: 60”H x 32”D x 15”W (152cm x 81cm x 38cm)
Weight: 750 lbs. (340 kg)

[8850168]

每機摳的喇叭每支都不一樣，不像某些大廠，同樣一個造型，
出了好幾代，都是一個樣...
只是...每機摳...在台灣好像很少人欣賞...
也很少看到用家...
很可惜的一個品牌...

有拉...我好友dandy有一對瞇泥...
造型真是美...聲音也棒...

好友..你不出來發個聲....

[8850168]

Q7賣到這種價位,會買的豪客除了聲音為外,我想外型也是決對考慮的因素,
這對在外型並不是如wilson audio 新Alexandria XLF
還是rockport altairII,YG那麼有設計感

原來好友已經跳出來讚聲了
不好意思...剛剛沒有認真看...
你的迷泥要不要考慮換這對..當豪客...
我知道...嫌貨人才是買貨人...
dandy！衝就對了....

PS.每天阿九的宣傳車都在我家附近唱『阿...向前衝..向前衝...』

[167]

听过除了Q1之外的所有Q系列音箱，不是很喜欢。
M系列更好

[Leo Yeh]

http://www.tvmidtvest.dk/nettv/?id=15451
