頂級的氣氛,頂級的享受
從台北市最熱鬧的地區走上3層的階梯,進入大門後,很難想像這地方是今天我來聽音響的地方,因為...音響試聽室不應該都是很有發燒味嗎?其實在歐美國家,對於音響的要求不僅要有好的表現,更要能跟生活結合,這也是近年來lifestyle盛行的主因,從一進門口,就被這裡的氣氛給吸引了入神,不自覺的就自個發呆了起來,還好有先到的朋友叫了我一聲,才從自我陶醉的情緒中醒了過來... 我想今天又是會很有收獲的一天...燈光的巧妙搭配與玻璃的透視空間,只能說...真是太完美了
http://www.my-hiend.com/leoyeh/200707/CRW_0934t.jpg
嘿嘿!這間偶已經來聞香過了,真的粉利害哦!不過夜深人靜時聲音會好很多.
整套系統聽下來我覺得形體明顯,空間感相當好,打擊,吉他的彈跳也非常鮮活,完全表現出高價音響該有的氣勢,當然,若能再調出一些ㄋㄞ勁那真是太完美了.
看到這標題還有各位高手的評語,
那次君悅的發表會沒有聞香還真是遺憾呀!:(
沒跟到真可惜..裝潢真漂亮.:O
許兄對美學有他的執著,現場真是燈光美,氣氛佳:)
不只是三點豪華,是豪華很多:D:D:D
本次主角:YG Acoustics Anat Reference Professional

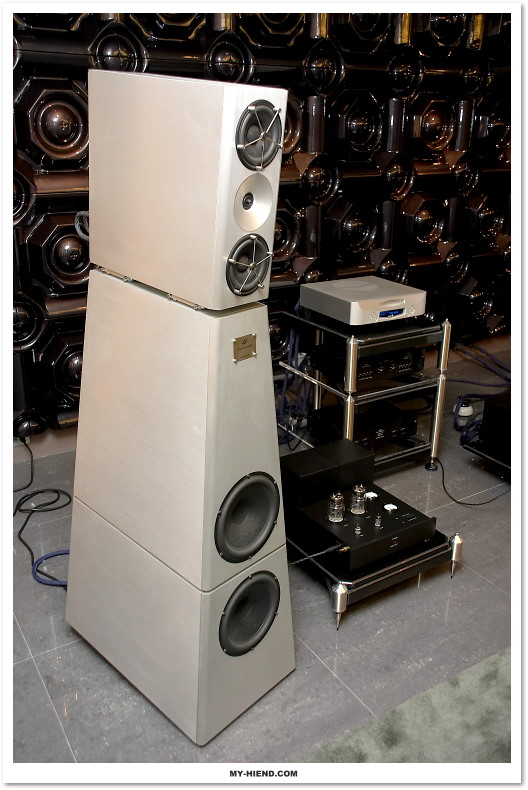

不是您眼睛花了,也不是我相機出了問題,架設好的Anat Reference Professional,的確是往前傾的,每聲道200KG的重量,在安裝上可是要小心翼翼
http://www.my-hiend.com/leoyeh/200707/CRW_0955t.jpg

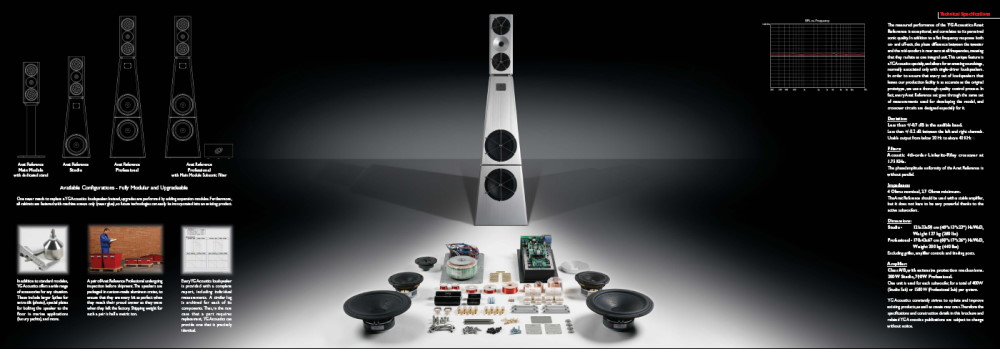

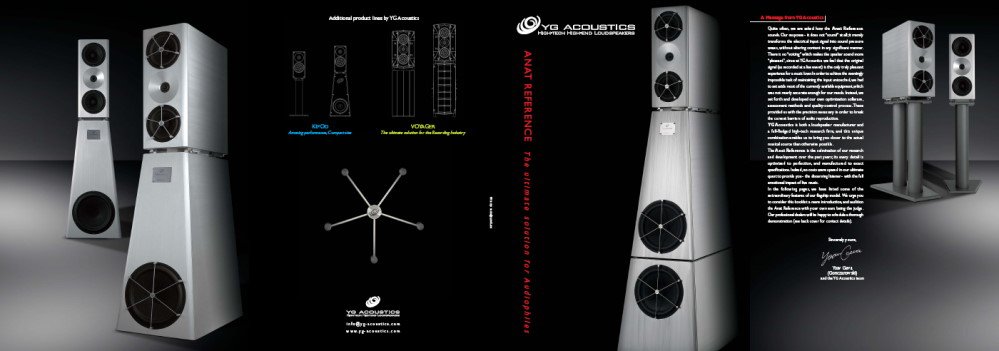

原廠的網頁如同YG的產品一樣,相當的精美
http://www.ygacoustics.com
http://www.my-hiend.com/leoyeh/200707/yg001.jpg
http://www.my-hiend.com/leoyeh/200707/yg002.jpg

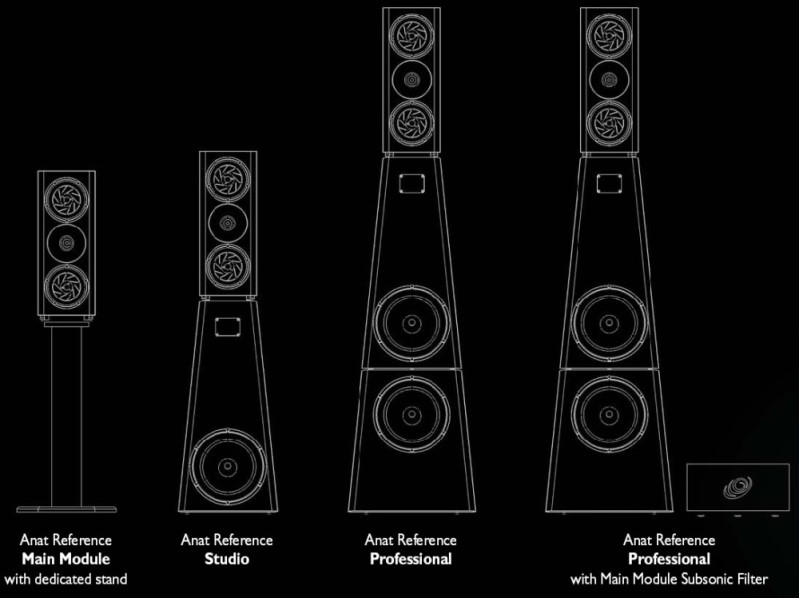

三件式的設計
Acoustic Anat Reference Professional為三個模組組合而成
箱體採用航太級超厚鋁合金,箱體的共振達到最接近沒有的程度,使聲音的相位與精準表現達到極致
http://www.my-hiend.com/leoyeh/200707/yg003.jpg
最基本的是最上層的Main Module,完整的兩音路喇叭,兩個6吋的中低音單體與一顆高音單體,對YG有興趣但沒有大空間的人可直接購買這部份來聽,原廠還有專屬的腳架
http://www.my-hiend.com/leoyeh/200707/CRW_0989t.jpg

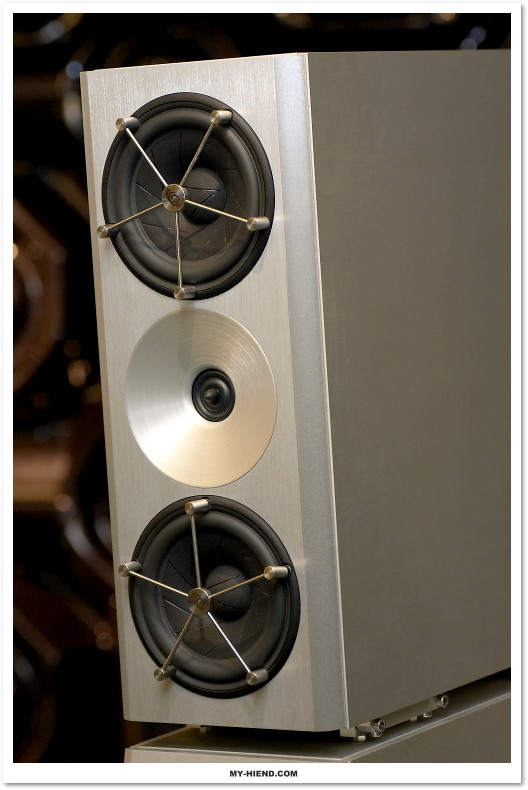

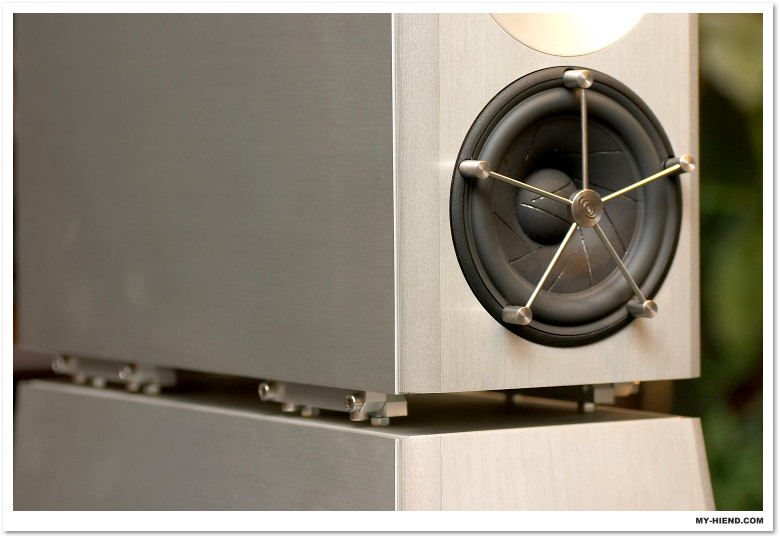

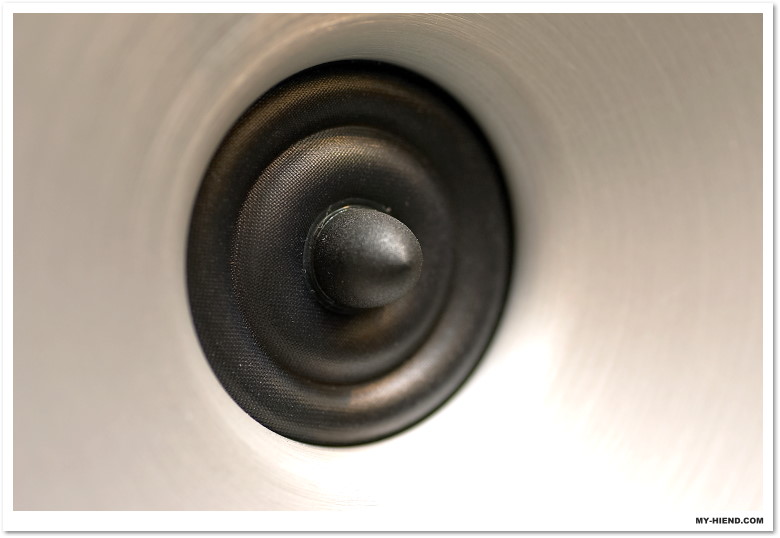

對單體略有所知的朋友可看出Main Module的三顆單體都是Scan的產品,分頻點設在1.75kHz
http://www.my-hiend.com/leoyeh/200707/CRW_1033t.jpg
http://www.my-hiend.com/leoyeh/200707/CRW_0993t.jpg
http://www.my-hiend.com/leoyeh/200707/CRW_1013t.jpg

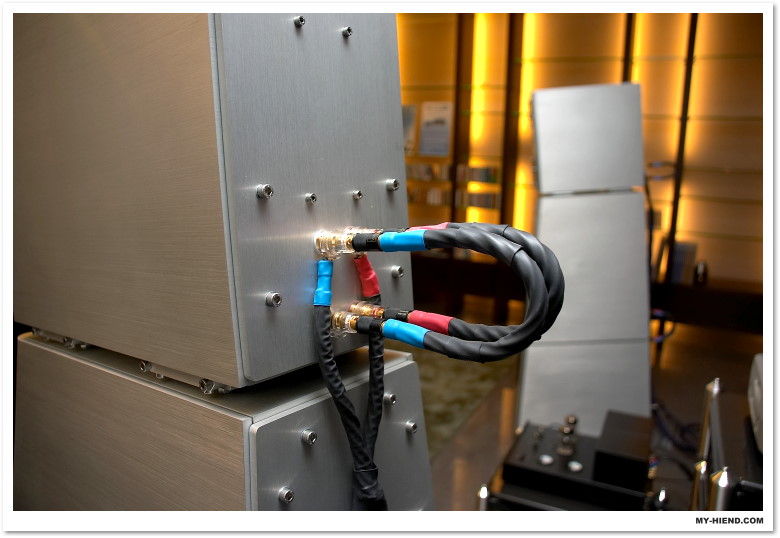

三件式組合當中,只有Main Module是被動式的,所以用家只需準備用來推Main Module的擴大機即可,Main Module採Bi-wire設計,阻抗正常為4 OhMs,最低為2 OhMs,原廠表示因為搭配兩個主動式重低音,所以擴大機不用超大瓦數即可推的不錯
http://www.my-hiend.com/leoyeh/200707/CRW_0964t.jpg

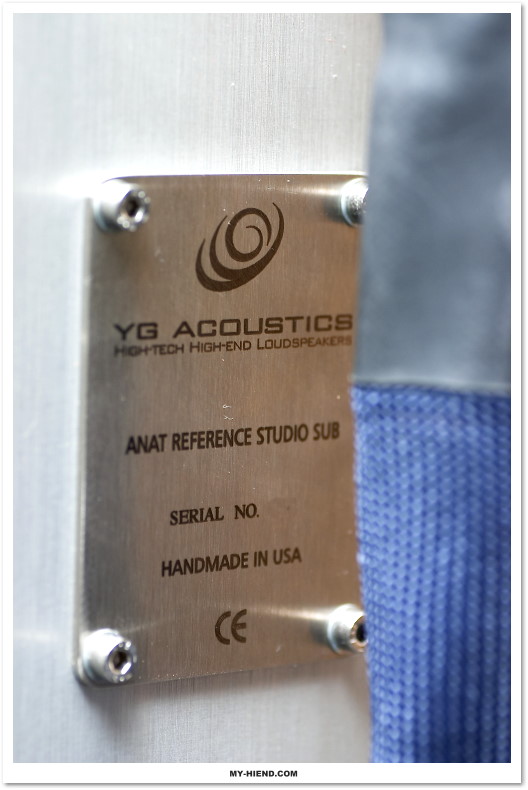

Anat Reference Studio
Main Module再加上中間第二截的10吋低音後,就是Anat Reference Studio,此時單支的重量為127kg,內建用來驅動低音單體的內建擴大機為A/B類200W
http://www.my-hiend.com/leoyeh/200707/CRW_1019t.jpg
http://www.my-hiend.com/leoyeh/200707/CRW_0961t.jpg

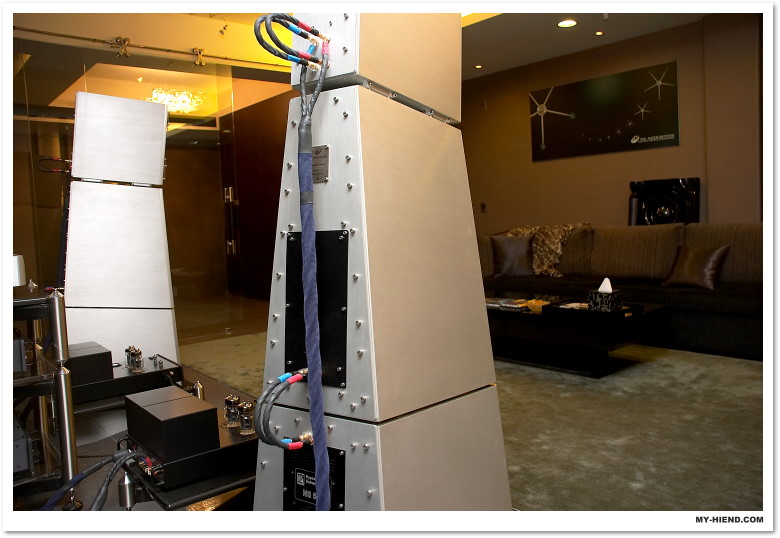

完整版:Anat Reference Professional

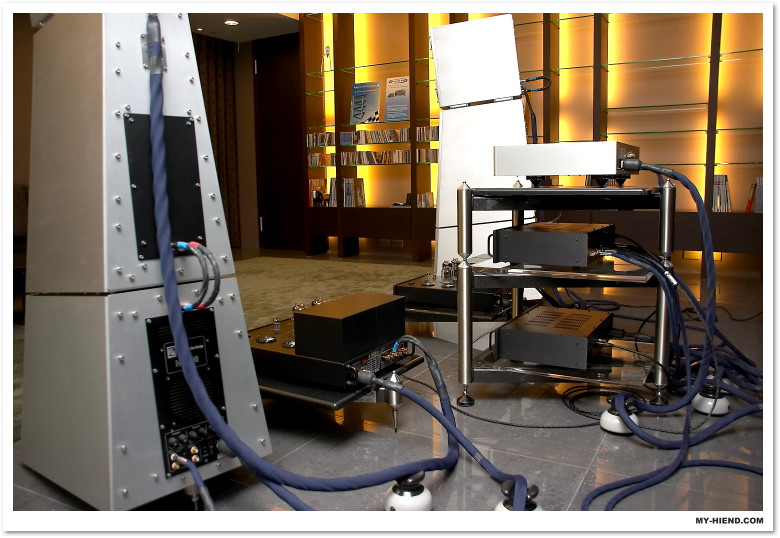

Studio再加上最底層的10吋超低音,就是Professional了,此時內建的擴大機來到了790W,重量單支為200kg
http://www.my-hiend.com/leoyeh/200707/CRW_0962t.jpg

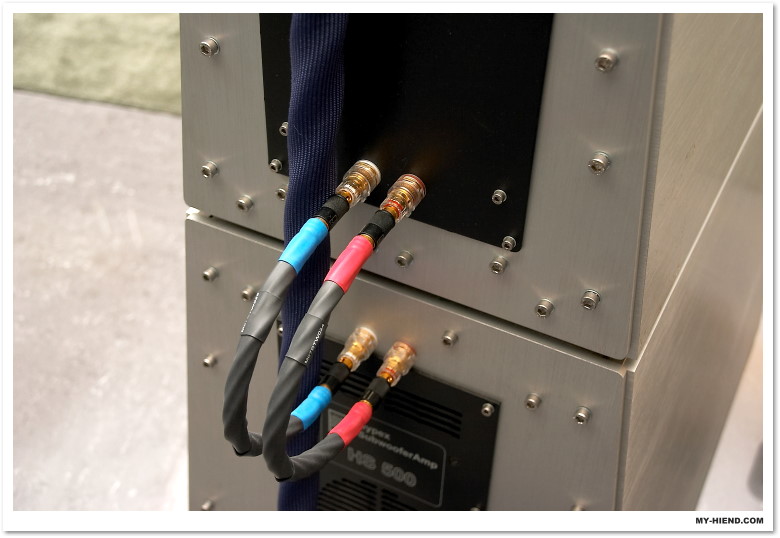

連接兩支超低音的跳線
http://www.my-hiend.com/leoyeh/200707/CRW_0967t.jpg

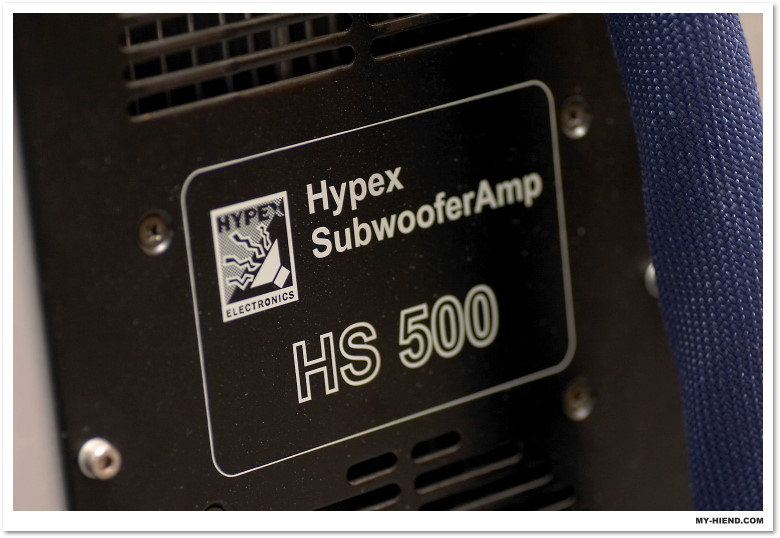

擴大機採用Hypex的產品HS 500
http://www.hypex.nl/
http://www.my-hiend.com/leoyeh/200707/CRW_1018t.jpg
分頻點、低頻增強與電平的調整,這邊的調整非常的重要
http://www.my-hiend.com/leoyeh/200707/CRW_1017t.jpg
看小葉拍得真棒, 這次音響展也要帶我的相機跟Leica R 鏡去拍拍看
我也有一個400D的機身
這台被小葉嫌到不行說...............
看起來還可以接受阿
http://img208.imageshack.us/img208/9758/img2224uv8.jpg
哈哈,小葉可算的上是DSLR的高手,不知道小葉嫌tonypony兄什麼,這張於平台上躍的照片當然可以,如果轉成黑白會更為強眼。
warwick
http://img213.imageshack.us/img213/6...2224uv8ff4.jpg
堅強的陣容
當然,用來伺候YG Acoustic Anat Reference Professional的系統也是大有來頭,並非泛泛之輩
http://www.my-hiend.com/leoyeh/200707/CRW_0971t.jpg
由上而下分別為
訊源:Audio Aero Prestige SACD
前級:Lamm Industries L2 Reference
前級的電源供應器
器材架:Monaco Modular Isolation System
http://www.my-hiend.com/leoyeh/200707/CRW_0975t.jpg
audioaero Prestige CD/SACD
http://www.my-hiend.com/leoyeh/200707/CRW_1034t.jpg
http://www.my-hiend.com/leoyeh/200707/CRW_0979t.jpg
www.audioaero.com/
http://www.my-hiend.com/leoyeh/200707/prestige.jpg
電源線與訊號線均為Kubala-Sosna的產品
http://www.my-hiend.com/leoyeh/200707/CRW_1025t.jpg
www.kubala-sosna.com
http://www.my-hiend.com/leoyeh/200707/kubala.jpg
前級:Lamm Industries L2 Reference
全平衡A類雙單聲道電源分離設計,高壓MOS-FET放大線路
官方訂價為USD 14,790
電源供應共使用5支真空管
12AX7/ECC83, voltage regulator tube;
6C19P, voltage regulator tube;
5651A, voltage reference tube
12AX3, rectifier tubes => 兩隻
www.lammindustries.com
http://www.my-hiend.com/leoyeh/200707/CRW_1011t.jpg
http://www.my-hiend.com/leoyeh/200707/CRW_1012t.jpg
http://www.my-hiend.com/leoyeh/200707/CRW_0980t.jpg
http://www.my-hiend.com/leoyeh/200707/CRW_0981t.jpg
http://www.my-hiend.com/leoyeh/200707/lamml2r.jpg
音響架:Monaco Modular Isolation System
20多年方程式賽車頂尖工程師Alvin Lloyd在音響上的傑作,用最先進的材質與技術結合對震動物理特性的專業知識來製造音響架,使用最高等級的碳纖維材質,其有8大特點
(1) a 304 stainless-steel spike;
(2) a large-diameter 304 stainless-steel support column, to which an aerospace-derived damping compound is applied;
(3) O-ring dampers in the caps of each support column;
(4) "true vector" stainless-steel ball couplers that couple multiple modules together;
(5) the viscoelastic damping material that secures
(6) the carbon-fiber supports, which provide the foundation for
(7) specially sized dampers between supports and shelves (footnote 1); and
(8) acrylic shelves (F1 shelves can be substituted at additional cost). The hollow stainless-steel columns can also be filled with lead shot to further improve performance. The approach is based on high-tech engineering and finesse rather than brute mass-loading.
這裡用的還是升級版
Monaco Modular Isolation System Options
•Apex rather than spike floor interface
•Monaco SE frame with twin-wall construction polymer fill (the air space between inner 1" diameter aluminum tube and outer 2" diameter column is filled with the proprietary damping polymer first premiered for the Apex interface - the inner tube itself can be filled with ballast or lead) and Apex rather than spike floor interface
•Formula Carbon-Fiber upgrade shelf
•Short WheelBase frame is as wide and tall as the standard Monaco Modular Isolation System but only sports 17.75" shelf depth for standard-size component
•Custom Dimensioning (for all models)
www.grandprixaudio.com
http://www.my-hiend.com/leoyeh/20070...modular_01.gif
http://www.my-hiend.com/leoyeh/20070...modular_03.gif
http://www.my-hiend.com/leoyeh/200707/CRW_1009t.jpg
http://www.my-hiend.com/leoyeh/200707/CRW_1010t.jpg
後級:Lamm Industries ML1.1
為ML1的新一代版本,除了改良一些線路,更簡單更有效率外,將保險絲的模組升級為更方便使用的模組、更高級的喇叭端子及更新更好的元件
ML1.1為單聲道90W的輸出,高電流低組抗的功率三極管的採用,使得ML1.1相較於其他真空管後級的表現有更好的表現
12AX7/ECC83, first amplification stage =>一級放大,1隻
12BH7A, second amplification stage =>二級放大,1隻
6C33C-B, output stage. =>輸出,2隻
兩個電子表頭,一個是輸出管的偏壓顯示,一個是idle及maximum plate current的顯示,讓用家一目瞭然
http://www.my-hiend.com/leoyeh/200707/CRW_0969t.jpg
http://www.my-hiend.com/leoyeh/200707/CRW_1002t.jpg
http://www.my-hiend.com/leoyeh/200707/CRW_0999t.jpg
http://www.my-hiend.com/leoyeh/200707/CRW_0977t.jpg
http://www.my-hiend.com/leoyeh/200707/ML1.1.jpg
器材架:Monaco Amplifier Isolation System
一樣是升級版的,用上了碳纖維的承板與角錐裡特殊的避震阻尼物質
http://www.my-hiend.com/leoyeh/200707/CRW_0997t.jpg
http://www.my-hiend.com/leoyeh/200707/CRW_0995t.jpg
www.grandprixaudio.com
http://www.my-hiend.com/leoyeh/20070...modular_04.gif
