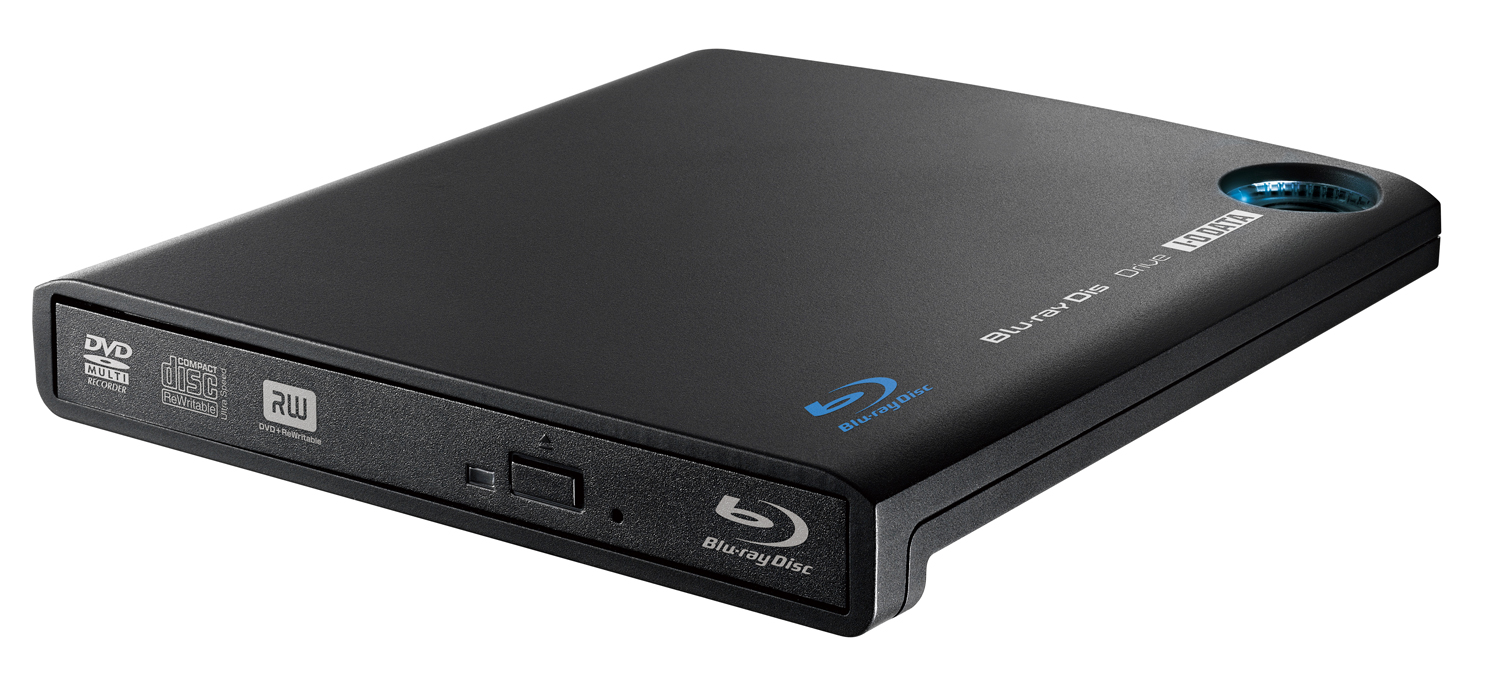

BRP-UP6
USB外接
http://www.my-hiend.com/leoyeh/2010a/brpup6.jpg
http://www.iodata.jp/product/storage/blu-ray/brp-up6/
可列印查看
版主 您好;
敞人是己退休享有愛心卡的老頭, 記得三年前曾從美國電話詢台灣代理商, 不得要領只好自己在美國設法取得. 我己經使用 Kid 三年, 由 Kid 再進入前級管机. 個人擁有二部160 GM ipod, 全部用 iTunes 以 AIFF 輸入, 我感覺不遜於 Studer cd player, 只是我才初入學行列, 有三部 Kid 有興趣請大家交流一下.
TAIWAN
DACHEE INTERNATIONAL CO., LTD.
3F., No.134, Sinhu 3rd Road, Neihu District
Taipei City114
TEL 886 2 2794 6099
FAX 886 2 8935 2650
[email protected]
Coy Hsu
http://www.krellonline.com/kid.html
KID, which stands for Krell Interface Dock, is more than a conventional iPod dock, it is a high performance iPod preamplifier. Krell core engineering technologies populate the circuitry, including discrete, differential, Class A analog circuitry. Optically isolated from the digital circuitry, the KID topology passes signal through a custom 256-step volume control and ends in balanced and single-ended audio outputs. Additional connections include composite, S-video, and RS-232 for use with more advanced control systems. The included remote control provides full iPod management as well as bass, treble, and volume adjustments. Compatible with all generation iPods and iPhones, the KID also charges the iPod battery when resting in its cradle.The KID and Papa Dock combination defines what is sonically possible when using an iPod as a music source. Coupling the convenience of iPod with Krell electronics elevates iPod listening to a level audiophiles will find unexpectedly thrilling.The KID delivers maximum sonic performance from any iPod device utilizing the dock connector, including the iPhone and iTouch. All of the iPod functions are accessible via the remote control or via the docked iPod device
Available in silver brushed aluminum.
KID, which stands for Krell Interface Dock, is more than a conventional iPod dock, it is a high performance iPod preamplifier. Krell core engineering technologies populate the circuitry, including discrete, differential, Class A analog circuitry. Optically isolated from the digital circuitry, the KID topology passes signal through a custom 256-step volume control and ends in balanced and single-ended audio outputs. Additional connections include composite, S-video, and RS-232 for use with more advanced control systems. The included remote control provides full iPod management as well as bass, treble, and volume adjustments. Compatible with all generation iPods and iPhones, the KID also charges the iPod battery when resting in its cradle.
The KID and Papa Dock combination defines what is sonically possible when using an iPod as a music source. Coupling the convenience of iPod with Krell electronics elevates iPod listening to a level audiophiles will find unexpectedly thrilling.
The KID delivers maximum sonic performance from any iPod device utilizing the dock connector, including the iPhone and iTouch. All of the iPod functions are accessible via the remote control or via the docked iPod device
Available in silver brushed aluminum.
Inputs
1 30-pin iPod-device type
1 3-conductor 3.5 mm connector
Audio Outputs
1 pair balanced via XLR connectors
1 pair single-ended via RCA connectors
Video Outputs
1 S-Video via a DIN connector
1 Composite via a RCA connector
Control Inputs
1 RS-232 input via a 9-pin D-subminiature connector
Control Outputs
1 12 VDC trigger output via 2-conductor
3.5 mm connectors (500 milliamps maximum per output)
Input impedance
Single-ended: 47.5 k Ohms
Output impedance
Balanced: 50 Ohms
Single-ended: 25 Ohms
Volume Control
256-step Digital Control
Input Overload
Single-ended: 4 Vrms
Output Overload
Balanced: 16 Vrms
Single-ended: 8 Vrms
Frequency Response
20 Hz to 20 kHz +0.7 dB, -0.0 dB
0.1 Hz to 90 kHz +0.7, -3 dB
Tone Control Range
Bass: +8 dB, -7 dB
Treble: +6 dB, -6 dB
Total Harmonic Distortion Plus Noise
Balanced Output: <0.002%, 20 Hz to 20 kHz,
4 V RMS or 4 mA rms
Signal-to-noise Ratio
Wideband, Unweighted: >94 dB
"A" Weighted: >97 dB
Power Consumption
Standby: 10 W
Power on: 25 W
Dimensions
Inches: 13 W x 2.8 H x 10.9 D
Centimeters: 33.0 W x 7.0 H x 27.7 D
Weight
Unit Only: 10 lb., 4.5 kg
Shipped: 14 lb., 6.4 kg
Mac|Life
"We must confess that we've never heard an iPod sound as fabulous is it did when docked to this system"
Read more...Robb Report
"The KID (or Krell Interface Dock) extracts audio from an iPod and handles it with the same care Krell lavishes on CDs."Read more...
Audio Video Revolution
"What I found most amazing about the KID and Papa dock combo wasn't its sound, but just how much I loved coming home and listening to it, for it was so simple."
Read more...
關注此帖，硬碟播放是趨勢
三部Kid? 那不就有三套系統...三台iPod?
一部在美國配 Marantz7,8 三音路 全音域 Jensen 12" Sigma SG-300 TRIAX Speakers, 另一套準備中. 台灣系統如下 Kid 配
Muse 328(WE328A*4):
使用4支WE328五極管, 三極接法/陰極隨耦輸出, 5U4整流/6AQ5/6AU6/5651管穩壓
Muse 45: 註: 24A推動管電容交連45， 24A也可以改用6J4，聲音一樣很棒!
5U4整流，LCRC濾波!
規格:每聲道輸出約1.6W超完美蠅量級功率! 適合90dB以上高效率喇叭。
Muse 50(WE328A*2+50*2+5U4) :
WE328推動管電容交連50，5R4整流，CLC濾波! 6AQ5/6AU6/0A2管穩壓
規格:每聲道輸出約4.5W超完美輕量級功率! 適合90dB以上高效率喇叭。
Marantz 3 二音路電子分音
12AX7 *6支, 5Y3整流，6AQ5/6AU6/5651管穩壓
15段可調式，(45/66/100/150/220/350/500/700/1K/1.5K/2.2K/3.5K/5K/7K/10KHz)
----- Original Message -----
規格
インピーダンス・・・8Ω
再生周波数帯域・・・4kHz～35kHz
出力音圧レベル・・・103dB/W（1m）
入力・・・50W（Mus.）
推奨クロスオーバー周波数 ・・・5kHz(-12dB/Oct.)以上
マグネット重量・・・480g(ALNICO)
総重量・・・5kg
■金属特有の鳴きが少なく、優れたtanδを持つ純マグネシウム振動板を採用。強力アルニコ低歪磁気回路、精密切削したホーンとイコライザー、タングステンダイアフラムリング/ワッシャーなど、贅を尽くした仕上がりは滑らかで透明感溢れる音質を保有させています。
Altec 5 288-16 C 用 311-60 號角 串 Fostex T500A MK II, 515 B 分頻點 350
很捧的耳擴, 買過七八部送人, 做爛音響提升音效也不錯. 我不是做生意的, 只想介紹給大家比較這東西, 也已用了數年.
http://www.methodshop.com/gadgets/re...a1/index.shtml
看起來是隨身耳擴，應該很方便
BRISTOL SHOW 2010: Arcam develops sub-£300 standalone DAC
YESTERDAY
http://cdn.whathifi.com/productimages/167310beagt.jpg
Arcam DAC expected to sell for £299
One of the great things about the Bristol Show is coming across something unexpected. Chatting to Arcam founder John Dawson, we discovered the company is in the process of developing a new standalone DAC.
What you see here is a hand-made prototype, although it gives a clear indication of what the production version will look like.
It has USB, optical and coaxial digital connections, and a mains on/off switch on the back. The little silver button on the top allows you to toggle between the different inputs.
Dawson says Arcam has spent a lot of time and effort improving the performance of the USB connection.
The unit is expected to go on sale this summer for around £299.
http://whathifi.com/News/BRISTOL-SHO...tandalone-DAC/
BRISTOL SHOW 2010: Naim develops prototype UnitiServe music server
YESTERDAY
http://cdn.whathifi.com/productimages/1672701f9gt.jpg
Naim UnitiServe: coming soon
We've already reported on Naim's forthcoming UnitiQute wireless streaming system – due on sale mid-April – but tucked away in the Naim room here at Bristol was this clever little box of tricks.
Called the UnitiServe, it's a prototype music server in a UnitiQute-sized box. Inside the box is a 1.5TB hard drive to which you can rip CDs in full resolution, as well as store and play 24-bit/96kHz .wav files. A single CD takes about 6-7 minutes to copy.
It uses similar software to Naim's £4500 HDX system, and can be controlled from any web browser, via a laptop or an iPhone app.
You can browse music stored on the UnitiServe by album, artist, playlist or genre and content can also be transferred to a network attached storage device (NAS).
There's no price for the UnitiServe yet, but Naim expects it to be on sale by June/July this year
And if you want to hear the UnitiQute in action, it's being demonstrated in the Naim rooms here at the show (502, 506, 509).
http://whathifi.com/News/BRISTOL-SHO...-music-server/
Channel D
Pure Music player ($99)
Automatic sample rate switching (16 / 24 bit, 44.1 to 192 kHz)
Gapless track playback and Memory Play
Dithered Volume Control
Includes 64-bit Adjustable Subwoofer Crossover, much more
Free, 15 - day Unrestricted Feature Demo
http://www.my-hiend.com/leoyeh/2010a/compo2a.jpg
跟某"A牌"比較更厲害？
http://www.channld.com/pure-music3.html
