可列印查看
挪威
paradox audio
最貴的
TITAN
http://paradoxaudio.webs.com/price.jpg
2x1 Meter 84990 NOK / 15450$ USD / 9999£ GBP
2x2 Meter 89990 NOK / 16360$ USD / 10589£ GBP
2x3 Meter 94990 NOK / 17270$ USD / 11179£ GBP
2x4 Meter 99990 NOK / 18180$ USD / 11769£ GBP
*Includes Free worldwide shipping.
http://www.my-hiend.com/leoyeh/2012b/viewThumb.jsp.jpg
http://paradoxaudio.webs.com

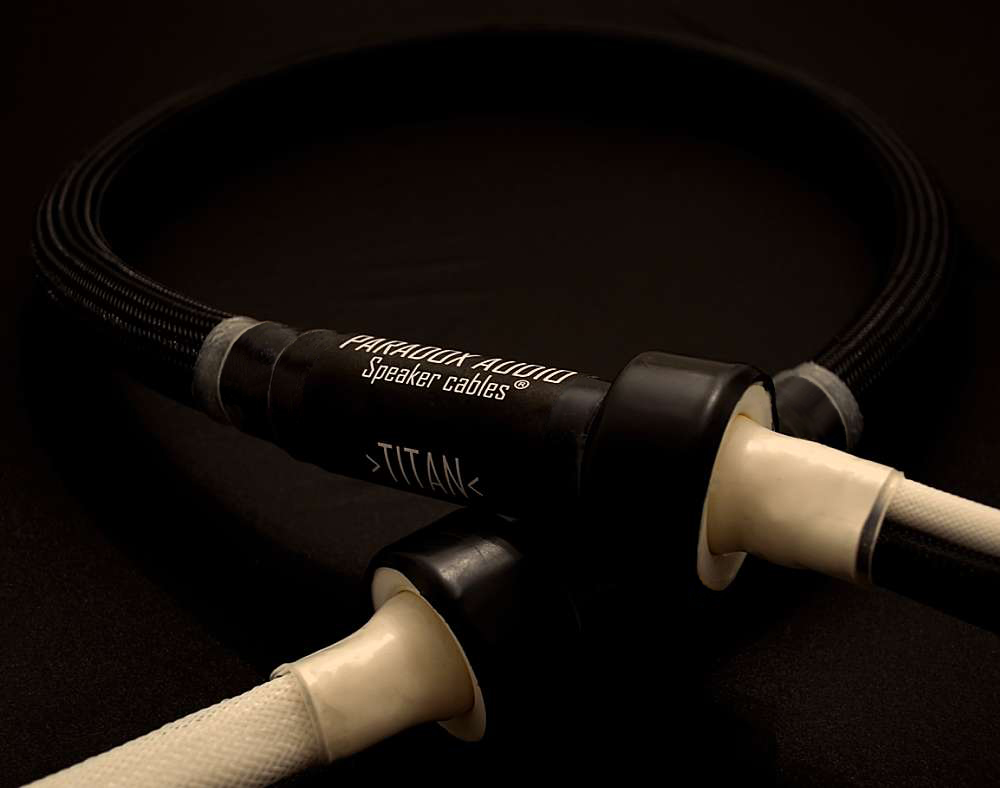

That is the old picture here is the new:
www.paradox-audio.com

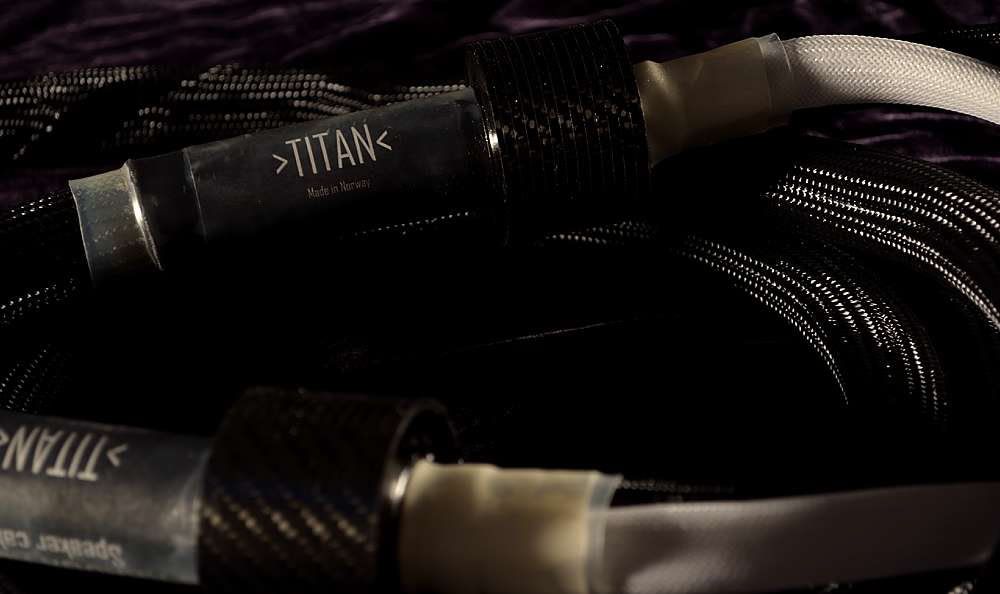

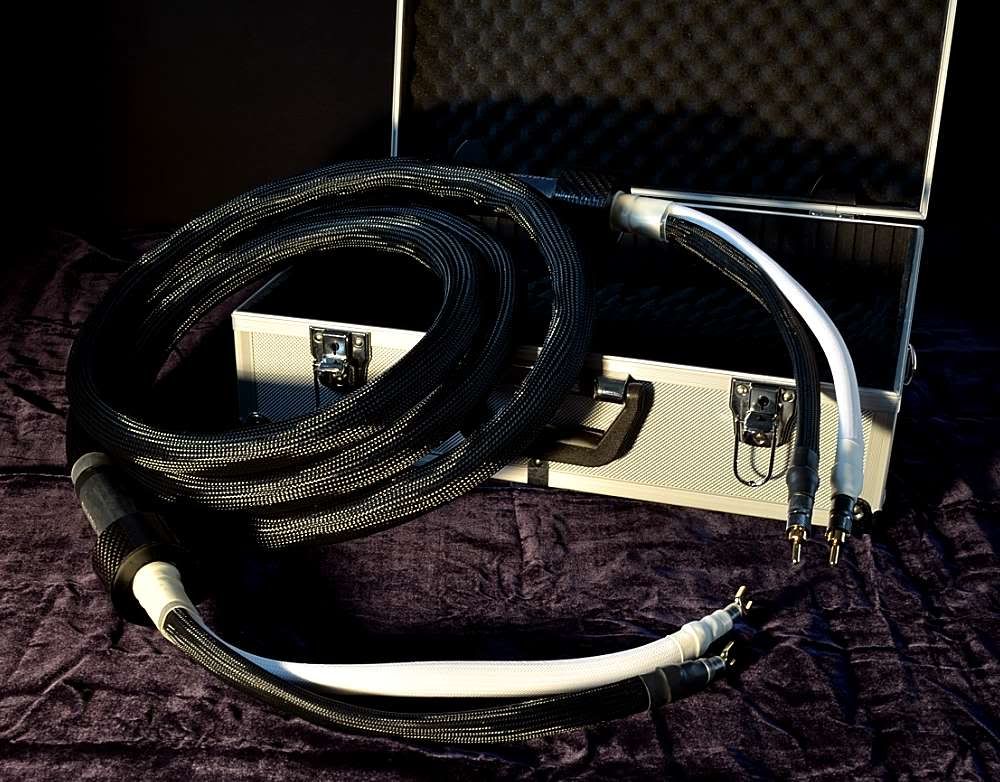

Paradox Audio - Titan:
http://webzoom.freewebs.com/paradoxa..._0001Titan.JPG
http://i1165.photobucket.com/albums/..._0001Titan.jpg
http://webzoom.freewebs.com/paradoxa..._0015Titan.JPG
http://i1165.photobucket.com/albums/..._0015Titan.jpg
http://webzoom.freewebs.com/paradoxa..._0022Titan.JPGhttp://webzoom.freewebs.com/paradoxa..._0022Titan.JPG
：http://www.synaestec-audio.deorigo SACD/CD/USBプレーヤー 35,000euro

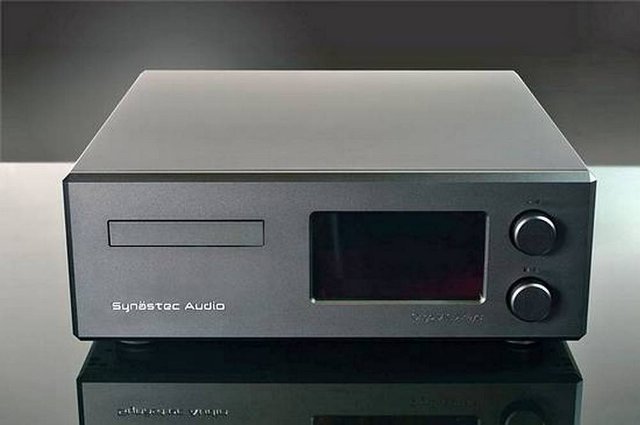

Synästec Audio Origo SACD player
http://2.bp.blogspot.com/-OeniPS5sYN...0/Front_en.jpg
http://3.bp.blogspot.com/-XpO3lfXUX8...00/Rear_en.jpg
http://1.bp.blogspot.com/-wodv6KscRT...nternal_en.jpg
http://1.bp.blogspot.com/-AAsxNrQsuM...DAC_ISO_en.jpg
http://2.bp.blogspot.com/-IDJl_ydROl.../Filter_en.jpg
http://2.bp.blogspot.com/-4cJaAnttzc...600/DSP_en.jpg
http://1.bp.blogspot.com/-iov23-2Gcm...0/Clock_en.jpg
http://1.bp.blogspot.com/-Kt1s0Ac80v...00/Data_en.jpg
http://3.bp.blogspot.com/-nfdkXvVfWR...0/Power_en.jpg
€35000
Features:
The perfect source
Music lovers who have a substantial collection of CDs and SACD desire to have their music played in the most original, uncompressed and unaltered form. They need is a digital disc player that will perform this direct music reproduction every time they pull out their favourite music from the shelf. The perfect machine is here--the Synaestec Audio Origo SACD player, a equipment which bridges the digital domain to the realistic analog world.
Stairway to perfection
The heart of the Origo SACD player is the all time legendary PCM1704K, the premium grade 24 bit pure ladder Digital to Analog Converter. A ladder-type DAC has no internal processor or digital modulator, in other words, the boundary between the digital and the analog is clear.
Also, a ladder-type DAC does not rely on error correction, precision is achieved by a time-consuming laser trimming process in the R2R resistor network. This is why they are so expensive and rarely used in new digital players. In the Synaestec Audio Origo SACD player, four of these select DAC chips are used in each channel in a parallel balanced configuration, to produce an absolutely distortion-free analog output signal.
Stable spin

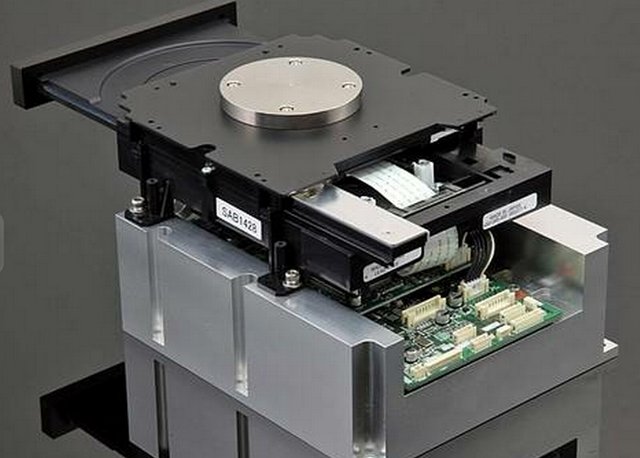

The Origo is equipped with a disc loading system produced by the Esoteric Company, which has been heavily modified by Synaestec audio. This precision disc loader is installed on a 35mm-thick machined aluminium platform to eliminate any possible mechanical vibration. The jitter-sensitive master clock is located right on the external DSP board and the disc loader is operated in slave mode to avoid the need to throw the critical clock signal through long distances.
Baking clock
While the Rubidium atomic clock is widely being used in advanced GPS application, there is an even better solution for high-end digital audio systems. The Oven-controlled-Crystal-Oscillator (OCXO) used in the Origo is a sophisticated SC-cut quartz crystal oscillator housed in a temperature regulated chamber, shielding itself from fluctuations in ambient conditions. This OCXO does not only excel equally in terms of aging and long term stability compared with an atomic clock, but it is also superior to the latter in phase noise and jitter performance, a truly ideal reference clock for digital audio systems.

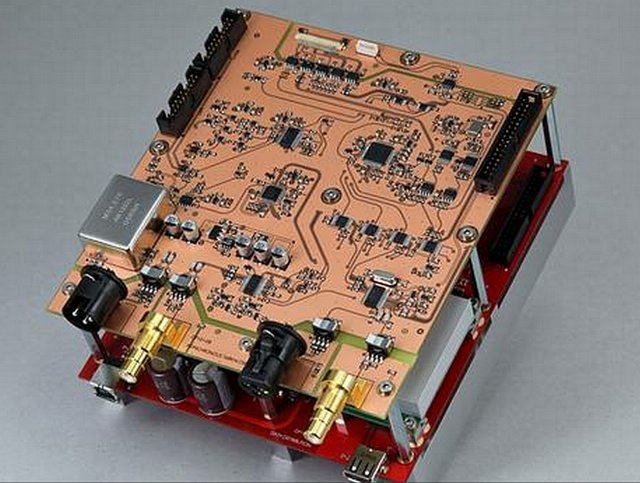

Having the most precise clock in a CD player is crucial, and bringing the clock signal to the DAC accurately would be equally important. Synaestec has adopted for the Origo the same high-speed matched load differential transmission line technology used in high-definition video interface. The technology is capable of processing extremely high data rate up to several Giga bits per second with less than 1ps added jitter. The differential architecture of this high-speed clock interface prevents interference between clock and data line, and also prevents digital noise leakage into the analog circuit.
Faster and better
Synaestec has chosen the dedicated ASIC chips for asynchronous up-sampling and over-sampling. These customized ICs offer much higher processing speed as well as reliability than their programmable counterparts. The linear phase FIR digital filter in these ASIC chips provides 768KHz final sampling rate to the DAC, which is twice the rate of other hybrid type DAC. Furthermore, their theoretically perfect filter performance is maintained with any given input sampling rate.
Passively activated

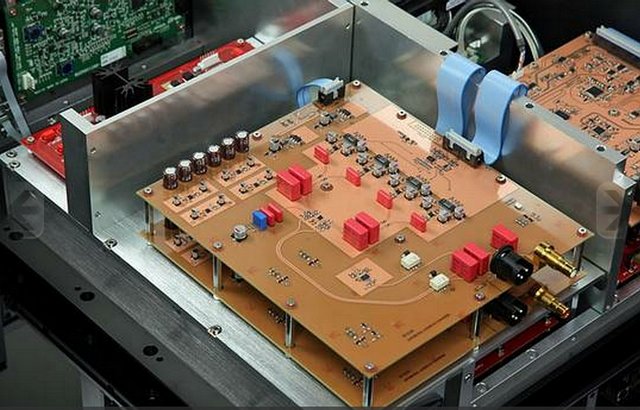

The high sampling rate of the Origo effectively expels digital artifacts much further away from audible frequency, allowing the use of very gentle analog filters in audio output. Thus the designated analog reconstruction filter has a minimalist design built with all passive components, just audio grade resistors and polypropylene film capacitors. There is no additional active analog circuit that might contribute to noise, distortion or excessive phase shift in this output filter. In short, nothing but pure music.
Zero interference

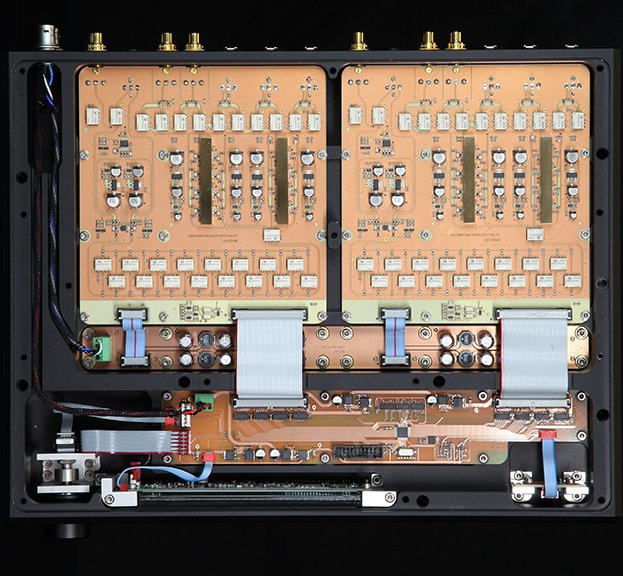

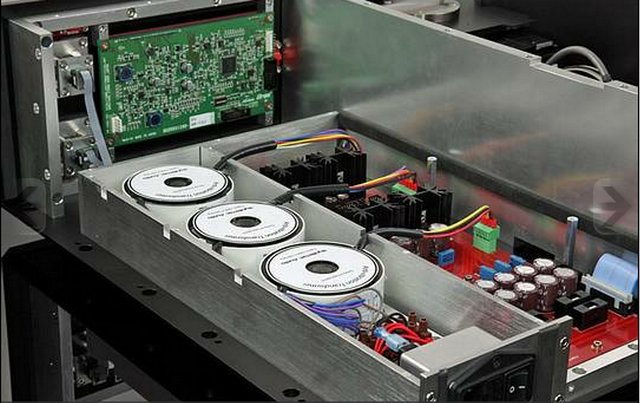

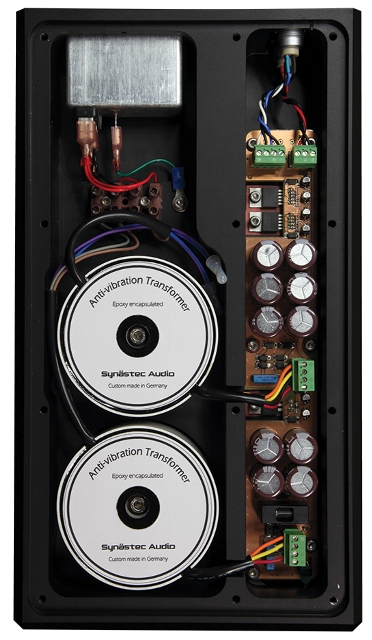

Every individual functional part of the Origo disc player is both physically and electrically isolated. Aluminium panels 5mm thick are used as shielding between each section, such as power supply, disc loader, micro-controller, DSP and the DAC. All the non-audio related circuits are galvanic isolated by high-speed digital capacitive barrier isolators. This means several different pieces of equipment seamlessly pieced together, without any harmful interference. Nothing but music, pristine, perfect.

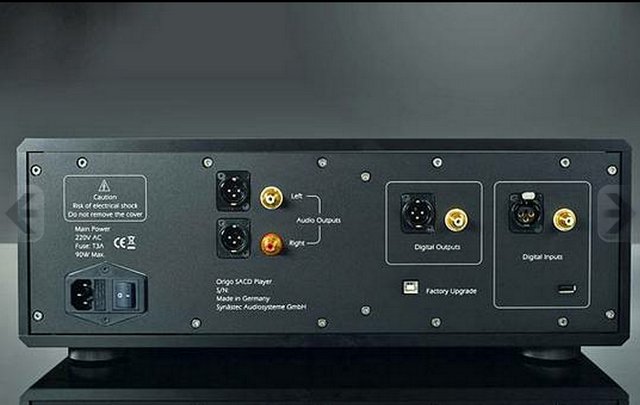

Specifications:
Digital inputs:
1 symmetrical
1 asymmetrical
USB
Digital outputs:
1 symmetrical
1 asymmetrical
Analogue outputs:
1 symmetrical
1 asymmetrical
Frequency response: 20 Hz to 40 kHz (+0 / -1.0 dB)
THD+N: < 0,001%
Noise floor: <-160dBr
Channel separation: > 130dB
Digital-In:
Input impedance
symmetrical 100 Ohm
asymmetrical 75 Ohm
Minimium input level 0.2V pk-pk
Digital-Out:
Output impedance
symmetrical 110 Ohm
asymmetrical 75 Ohm
Output level:
symmetrical 1.6V pk-pk
asymmetrical 1.2V pk-pk
Analogue-Out:
Output impedance
symmetrical 150 Ohm
asymmetrical 75 Ohm
Full scale output voltage: 3.9Vrms
Power consumption: 50W
Weight: 38kg net
Dimension: 485 mm x 485 mm x 185 mm (W x D x H)
Aura Fidelity Lotus Grande Tower integrated amplifier
http://1.bp.blogspot.com/-k6ypzRV_ha...00/4086259.png
http://2.bp.blogspot.com/-3Lgs2UOLkY...00/3522189.jpg
Grande Tower is the first product in the new Lotus series.
Output power 8/4 ohm - 300/360 watt
Freq response - 18-32000k
S/N - 120dB
Damping factor - 1100
Inputs
3 rca
1 xlr
1 Pre out
Options
Phono stage
Active crossover
http://www.leema-acoustics.com/
朋友幫小弟帶一對leema acoustics小喇叭回來，表現不錯好聽又不貴，可惜台灣沒人代理
使用傳輸線式音箱.....(happy)引用:
作者: 小葉
