會有兩個方案
O4HD升級 or O6HD預購......
會有兩個方案
O4HD升級 or O6HD預購......
Fully balanced differential Digital Analog Converter (DAC)
- Two TI 192khz/24-bit Burr- Brown PCM1792 running in mono mode
- Ultra-low jitter master clock (10 picoseconds after re-clocking)
- TI SRC4194 Asynchronous Sample Rate Converter (Up-sampling to 24-bit/384 kHz)
- Ultra-fast op amps (< 20V/us slew-rate)
- Analog filter: 2nd-order Bessel reconstruction filter
http://www.olive.us/p_images//o6hd/o6hd_dac.jpg
State-of-the-art technology platform &
high-speed processor
- Flawless encoding and decoding of
lossless audio format- Fast management and access to
extensive music libraries- Supports simultaneous streaming of high
quality audio to multiple rooms
Hard Drive
- Ultra-quiet 2TB AV hard drive
- Holds almost 20,000 HD tracks or
6,000 CDs in original quality- Cushioned in 8 layers of noise cancelling
padding
CDRW
- High fidelity TEAC CDRW mechanism
- Import: Audio CDs
- Burn: Audio CDs, MP3 CDs, Data CDs
High-end Headphone Output
- Powered by...
- Dedicated TI 192khz/24-bit Burr- Brown PCM1792
- TI's top-of the line TPA6120A2 High Performance Audio Amplifier (current-feedback architecture)
Audio Connectors
- Analog Output:
- 1x XLR (balanced), made by Neutrik
- 1x RCA, (24k gold-plated)
- 1x Headphone, stereo, 6.4 mm- Digital Output:
- 1x AES/EBU (balanced), made by Neutrik
- 1x S/P DIF optical Toslink,
- 1x S/P DIF coaxial cinch, 24k gold-plated
Supported Audio Formats
- Bit rate: 16-bit, 20-bit, 24-bit
- Sampling Frequency: 10kHz up to
200kHz- WAV, FLAC, MP3 (128 and 320 kbit/s),
AAC (128 kbit/s)
Networking
- Wireless, 802.11n (54 Mbit/s),
Encryption:
WEP, WPA, WPA2, 64- and 128-bit- 1x Wired Gigabit Ethernet
Other Ports
- 1 x HDMI (480p, 60Hz)
- 1 x USB 1.1/2.0
- Infrared Receiver Input
Color touch-screen
- 10.1'' wide-aspect ratio
- High-resolution (800 x 480 pixels)
- Glass-on-Glass touch-screen technology
http://www.olive.us/p_images//o6hd/o...ecs_screen.jpg
High-precision linear power supply
- Separate supplies for analog and digital components
- High-performance AC line filter
(ultra-high noise attenuation at close to 80db)- Custom-built toroidal transformer
- Large reservoir capacitors
- Ultra-low noise linear regulators
(two stages of regulation, dedicated linear regulator for the clock generator)- Passive cooling concept no fan
http://www.olive.us/p_images//o6hd/o6hd_specs_power.jpg
請問06HD(或就04HD的使用經驗)
是否能夠將預先擁有的.wav或flac上傳到他的硬碟呢??
沒有預先這個事呀，除非是現有的用家，可以請代理對拷硬碟
若是新用家，就透過網路把歌丟進去呀
網兄 Armiba 曾分享過
http://www.myav.com.tw/bbs/showthrea...23#post4515723
小弟也曾經跟著做過
缺點是 沒有 ALBUM 的圖片 得自行加入
還有曲目的順序會變動 ....
06HD 的外觀還真是不錯看 ~ 只是有點傾斜的上蓋設計 使用上會不會麻煩些一(如果不是擺在最上層的架上 平面桌上應該是沒問題) 端子真的是更齊全了 .. 連 XLR 都有了 WIFI 天線好像是兩根耶 .. 真是蠻令人心動的 不知聲音有沒有更HI-END 啊 ~ 應該來辦個試聽會啦 :D:P :*(blush)
到貨就辦辣妹巨乳發表會的啦.....
:D:D:D...............引用:
作者: 小葉
本站一向說到做到....嘿嘿嘿.......
學小惡模找巨乳來開箱照一下.....
曲目的順序會變也很困擾我引用:
作者: kib71350
後來我發現要改成001 002一直到009
後面的只要用10 11 12---就可以了
這樣就不會亂跳順序了
讚讚讚~~~~~!!:P:P:*引用:
作者: 小葉
設計的真是讚阿!!!!
Olive 4HD跟6HD長不一樣,怎麼升級@@?引用:
作者: 小葉
換模組? or 補價差換機嗎?.
想到花好多時間Rip的CD...備份出來在後能再用6HD備份復原回去嗎?
不太想再花一次時間搬CD了..@_@"
不過以外型比例(按鍵)
6HD比較小台?
yes，補價差
6HD的硬碟應該可跟4HD直接換..不用擔心
所有器材和線材條件相同狀況下
請教類似有經驗的人(不是聆聽經驗呀,沒人聽過06HD)
你們認為04HD和06HD同樣是用同軸輸出做比較的話(AES就不比啦:D)
06HD會比較優嗎??還是應該會一樣??
目前我唯一懂的是電源部份有強化??還有什麼可能性造成06HD會比較好聲嗎??
有跟O3HD一樣送神秘禮物嗎?
一切就等O6HD到貨吧..............
現在推出12/15前預購06HD送iPad耶!!!來團這個組合啦哈哈
哇.............那裡有這麼好康的...???
那麼好康,但不會售價是O4HD的兩倍以上吧引用:
作者: Mega
請在美國MIT時的學長算了一下 (還是不忘延續另一篇的胡扯:P)
在美國4999元再加近五百塊的稅了...
應該還是這裡團購會比較優啦:D
價格在此 :D :D
http://www.olive.us/store/?storepage=usa
iMaestro現在美國巳經不能下載了
請問有人知道那邊有嗎?
應該是該下載 olive APP...
終於弄好了
itune的設定真不順
裝完要重登才進得去(重點是沒提示)
稱謂選先生，小姐，博士，太太都不行
竟然要改英文介面才行
亂七八糟，錯這麼久也沒改
olive的原廠網站也很糟
support的下載找都找不到在那
這是一家有電腦底子的公司搞出來的網頁嗎?
抱怨完了
能用ipod touch操作真是爽快啊
可惜不能看封面選片
進cd封面後只要是中文的artist全變亂碼了
因為原廠更改了 App store 的遠端控制的名稱 造成許多的新朋友找不到 iphone 上的 App
所以小編幫大家簡單整理一下 整個過程啦 :D
在 iphone 主畫面下 有個 App store 的 icon :):) 第四排左邊算來第二個 點一下
http://www.my-hiend.com/vbb/picture....ictureid=12716
在 search 搜尋的選項下 輸入 olive app
http://www.my-hiend.com/vbb/picture....ictureid=12717
打完 olive app 後 按下 search ... 會出現以下畫面
http://www.my-hiend.com/vbb/picture....ictureid=12718
你的All right reserved 是手寫上去的 :O:O:O

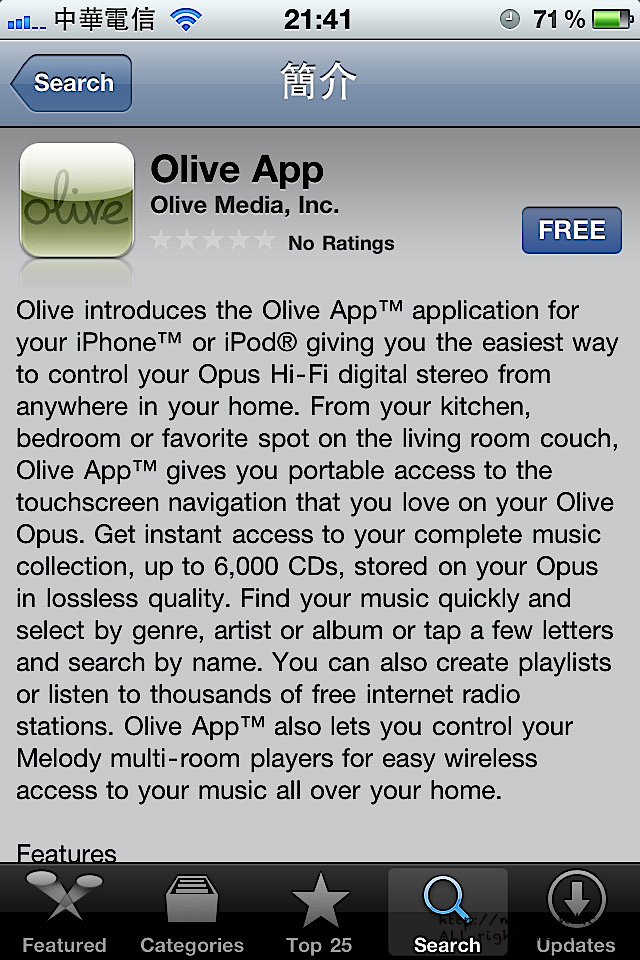

沒錯 第一個選項的 olive app 就是我們要的 點一下 看到右上方的 FREE 嗎 ?
沒錯是免費的APP 再按一下 會出現 install 再按一下 會請使用者輸入 apple ID 的密碼後 就可以下載 olive app 啦 (blush):P:*
http://www.my-hiend.com/vbb/picture....ictureid=12719
當然不是啦 :D 是浮水印的一部份啦 :P引用:
作者: edwardmos
http://www.my-hiend.com/leoyeh/2010b...lver_front.png
http://www.my-hiend.com/leoyeh/2010b...ilver_back.png
O6HD是Olive目前的旗艦產品，24Bit/192kHz解碼能力，全平衡DAC與10.1"玻璃的觸控螢幕。
‧全平衡DAC (配對的Burr-Brown PCM1792晶片)，S/N比為124 dB
‧極低時基的主時鐘 (小於10 picoseconds)
‧表現極好的升頻轉換：TI的SRC4194晶片，升頻到24Bit/384kHz
‧High End等級的輸出級：極快速低失真的OP放大(20V/us slew-rate)，溫和的2次Bessel reconstruction濾波，非常平坦的頻率響應(+0/-0.5db, 20Hz-20kHz)與極低的失真(THD+N of less than 0.0007% (at 20Hz-22kHz))
‧獨立的耳機解碼DAC：PCM1792 DAC與TPA6120A2放大
‧高精準線性電源：類比與數位獨立，類比使用極低噪音的線性電源。此外還有獨立的AC濾波，噪音降低至80dB。
‧美國設計與手工打造
‧鋁製本體，減少操作噪音與共振。
‧10.1"的彩色玻璃觸控螢幕。
‧2TB的硬碟，可存6000張CD或20,000首高解析檔案。
‧專門設計的2個部份的減振角錐。
‧獨特無風扇的散熱系統。
www.olive.us
代理：小高音響
http://www.my-hiend.com/leoyeh/2010b...ecs_screen.jpg
http://www.my-hiend.com/leoyeh/2010b...pecs_power.jpg
規格
Fully balanced differential Digital Analog Converter (DAC)
Two TI 192khz/24-bit Burr- Brown PCM1792 running in mono mode
Ultra-low jitter master clock (10 picoseconds after re-clocking)
TI SRC4194 Asynchronous Sample Rate Converter (Up-sampling to 24-bit/384 kHz)
Ultra-fast op amps (< 20V/us slew-rate)
Analog filter: 2nd-order Bessel reconstruction filter
State-of-the-art technology platform & high-speed processor
Flawless encoding and decoding of lossless audio format
Fast management and access to extensive music libraries
Supports simultaneous streaming of high quality audio to multiple rooms
Hard Drive
Ultra-quiet 2TB AV hard drive
Holds almost 20,000 HD tracks or 6,000 CDs in original quality
Cushioned in 8 layers of noise cancelling padding
CDRW
High fidelity TEAC CDRW mechanism
Import: Audio CDs
Burn: Audio CDs, MP3 CDs, Data CDs
High-end Headphone Output Powered by...
Dedicated TI 192khz/24-bit Burr- Brown PCM1792
TI's top-of the line TPA6120A2 High Performance Audio Amplifier (current-feedback architecture)
Audio Connectors
Analog Output:
- 1x XLR (balanced), made by Neutrik
- 1x RCA, (24k gold-plated)
- 1x Headphone, stereo, 6.4 mm
Digital Output:
- 1x AES/EBU (balanced), made by Neutrik
- 1x S/P DIF optical Toslink,
- 1x S/P DIF coaxial cinch, 24k gold-plated
Supported Audio Formats
Bit rate: 16-bit, 20-bit, 24-bit
Sampling Frequency: 10kHz up to200kHz
WAV, FLAC, MP3 (128 and 320 kbit/s),AAC (128 kbit/s)
Networking
Wireless, 802.11n (54 Mbit/s),
Encryption:WEP, WPA, WPA2, 64- and 128-bit
1x Wired Gigabit Ethernet
Other Ports
1 x HDMI (480p, 60Hz)
1 x USB 1.1/2.0
Infrared Receiver Input
Color touch-screen
10.1'' wide-aspect ratio
High-resolution (800 x 480 pixels)
Glass-on-Glass touch-screen technology
High-precision linear power supply
Separate supplies for analog and digital components
High-performance AC line filter
(ultra-high noise attenuation at close to 80db)
Custom-built toroidal transformer
Large reservoir capacitors
Ultra-low noise linear regulators
(two stages of regulation, dedicated linear regulator for the clock generator)
Passive cooling concept no fan
Design
Anodized fine-grade aluminum shell
Passive cooling without noisy fan
Ultra-quiet operations
Measurements
Width 17.125"
Height 4.5" (at highest point)
Depth 14"
Weight 16.5 lb
Color
Silver or Black
Box also includes
User manual, Remote control with battery
w/ battery, WiFi-antenna, Power cord.
Audio Performance
Measure Line output Headphone output Comment
THD + N 0.0007% 0.0007% 20Hz-22kHz
Signal/Noise Ratio 124dB 116dB 20Hz-22kHz
Dynamic range 121dB 113dB 24bits/96kHz
Linearity >110dB >110dB
Channel separation >120dB >110dB
Ouput level 2V RMS 4V RMS Unbalanced
4V RMS -
Residual output noise 1.8uV RMS 6.0uV RMS Unbalanced,
A-weighted
2.5uV RMS - Balanced,
A-weighted
Frequency response +0 / -0.5dB +0 / -0.5dB 20Hz-20kHz
O6HD與O4HD的比較
http://www.olive.us/products/music_servers/olive6hd/compare.html
O6HD多了
(1) 平衡設計，兩顆DAC晶片與1組類比平衡輸出
(2) 電源分離更強化
(3) 10.1"大型玻璃彩色觸控螢幕
(4) 獨立的耳機DAC與放大
(5) 數位輸出為AES/EBU
http://www.my-hiend.com/leoyeh/2010b...in_landing.jpg
USD 5,000 (未稅)
臺灣可能要訂20多萬........
