聊聊臺灣沒代理的品牌

Förster Audiotechnik FA.LS 1

http://my-hiend.com/audiotemp/2014/N...ay/3.17.45.jpg

FA.LS 1是Förster Audiotechnik最大的揚聲器，高度超過兩公尺，用家可以感受到它帶來無窮無盡的能量和豐滿的聲音，就算聆聽室又大又高，也可以讓聲音充滿整個空間。如同現場聆聽演奏會位於最好的位置、在演唱會中位於第一排搖滾區一樣。

使用Air Motion Transformer的高音單體為此喇叭的核心，中音單體中兩個magnetostats擁有優異的聲學動態特性，這和Air Motion Transformer及四個20cm低音都擁有正確相同的時間相位，低音單體使用陶瓷振膜，擁有很好的衰減特性和低失真，在正確的房間使用可以達到極低25 Hz(-3dB)的響應頻率。

http://my-hiend.com/audiotemp/2014/N...ay/3.17.46.jpg

http://my-hiend.com/audiotemp/2014/N...ay/3.17.47.jpg

http://my-hiend.com/audiotemp/2014/N...ay/3.17.48.jpg

SPECIFICATIONS

Sensitivity: 91dB @2.83Vrms/1m

Frequency Response: 25 Hz - 35000 Hz

Impedance: 4 Ohm

Dimensions of housing in mm: 2000 x 510 x 750 (H x W x D)

Height incl. coupling and decoupling measures in mm: 2010

Mass (Pair): 300 kg

Capacitors: Mundorf MCap SUPREME, MCap SUPREME Silver/Oil, Silver Mica
Coils: Mundorf CFC copper foil coils
Resistors: Metalglaze film resistors and MOX
Each bass reflex tube is made out of aluminium, anodized and refined
Equipped with FA coupling and decoupling system as standard (invisible under the housing)
Total decoupling of all chassis and contacts from the housing
Double wall construction filled with silica sand
Impedance linearity
Mundorf binding post, solid material copper
Third contact for the shielding of the internal wiring
Special internal wiring made by FÖRSTER AUDIOTECHNIK with separate signal shielding right up to the individual chassis - ideal further development of FA.AK 2

http://www.foersteraudiotechnik.de

http://www.my-hiend.com/leoyeh2/2014a/daily001709.jpg

(Available April 2014)
While keeping the proven dc10audio innovations intact, we have re-created the horn loudspeaker all over again with totally new horn configuration. The Kabuki Ohaku includes upgraded drivers and modified RAAL ribbon tweeter, wire, and crossover components.
SPECIFICATIONS:
• dc10audio's unique horn loading (all drivers port through the horn)
• 12-inch full-range driver with AlNiCo motor with +/-30dB adjustable output
• RAAL ribbon tweeter loaded in the horn
• Massive 12-inch bass driver with zero interfering grills
• Exclusive back-mounted tonewood external & internal resonators
• Solid core 6N cryo-copper in cotton wiring with second run in pure silver
• Minimal crossover, no circuit boards
• Beeswax paper stacked cryo-copper foil capacitors
• Exclusive horn blades in heirloom woods (See wood choices)
• Frequency response: 18 Hz-80,000 Hz (+/-2dB)
• Sensitivity: estimated 97 dB
• Impedance: 8 ohms
• Overall size: 53" high x 16-19" wide x 22.5" deep each
• Weight: 170 lbs each
Price for pair: $24,500

http://www.dc10audio.com

POET Audio Pandoretta°

http://my-hiend.com/audiotemp/2014/N...day/3.19.1.jpg

Pandoretta°可能是世界上最好的360度音響系統

Pandoretta°可以直接由iPhone或iPad及其他智慧型手機透過無線傳輸的方式撥放音樂

配置七個喇叭單體，不論在任何方位都提供卓越的高品質音效

外殼為不鏽鋼、內部則為木頭，來自奧地利的頂級工藝

Pandoretta°是由擁有幾十年經驗的工作團隊和奧地利設計師Thomas Feichtner的研究成果

http://my-hiend.com/audiotemp/2014/N...day/3.19.2.jpg

http://my-hiend.com/audiotemp/2014/N...day/3.19.3.jpg

http://my-hiend.com/audiotemp/2014/N...day/3.19.4.jpg

http://my-hiend.com/audiotemp/2014/N...day/3.19.5.jpg

http://my-hiend.com/audiotemp/2014/N...day/3.19.6.jpg
內部示意圖

About POET Audio:

1. Keep it simple.

The development in entertainment electronics was rapid in the past years. A lot of new technologies were invented. However they didn't bring relief to the user.

pandoretta° stands for:
Maximal compatibility. No user manuals. No additional remote control.

2. High end quality for digital sound.

If you like music in high-end quality with crystal clear highs, precise mid-range and strong bass you needed huge speakers. Some manufacturers solved the problem with separating three-way speaker systems (tweeter, mid-range, woofer) into small satellite speakers for highs and subwoofers for the bass. Satellites were often installed on the ceiling and the subwoofer was stored behind the couch. The consequence: tangled cables and loss of sound quality, especially in voice- and mid-range.

pandoretta° stands for:
Perfect sound characteristics, vastly independent from the positioning of the sound sources.

The audio engineering bears the hallmarks of Thomas Pfob, musician, mathematician and sound scientist for more than 30 years.

3. High quality and fine manufacturing

More and more manufacturers decide to outsource production to low-wage countries on grounds of costs. The target price defines the material usage.

pandoretta° stands for:
Best material usage. 100% production in Austria. No compromises.

4. Design.

Hi-Fi equipment rarely features smart design.

pandoretta° stands for:
Highest demand to aesthetics.

The unique look originates from Thomas Feichtner, Austrian Award Winner for design.

Sincerly,

Markus Platzer
Founder and CEO

相當有趣的網站風格:
http://www.poetaudio.com/

NORMA HS-DA1

http://my-hiend.com/audiotemp/2014/N...day/3.19.9.jpg

NORMA推出新的DAC轉換器 HS-DA1，達到表現出高解析音樂檔的最佳效果。優異的轉換和聲音質量、操作性佳和多功能的HA-DA1無疑是立於DAC的高端上。

NORMA HS-DA1能夠滿足用家的需求，即使是專業用家也沒問題，並且非常容易更新。目前HS-DA1共計有三個版本。

HS-DA1:
基本版已經提供了優質DAC的所有功能，採樣頻率最高至192kHz，也可升頻至192kHz，並配備有五個寬帶的數位輸入端(24-bit, 192KHz, USB and SPDIF)，並具有RAC和XLR平衡輸出。

HS-DA1 VAR:
具有可變輸出電平，可以使用遙控器切換固定或是可變式電平。

HS-DA1 PRE:
兩個額外的類比輸入，擁有一個更高等級的A類耳機擴大功能。並有高低增益的切換選擇和主動被動的前級功能切換。所有功能皆可遙控。

http://my-hiend.com/audiotemp/2014/N...day/3.19.7.jpg

http://my-hiend.com/audiotemp/2014/N...day/3.19.8.jpg

規格:

Connections Digital Inputs :
IN1 : USB, 2.0 High Speed
IN2 : SPDIF RCA, 75Ohms
IN3 : AES/EBU XLR, 110Ohms
IN4 : TOSLINK OPTICAL, 96 KHz, (192.0 KHz may be achieved, but not guaranteed)
IN5 : SPDIF RCA, 75Ohms (IN5 can be set as SPDIF Output by CD Mechanism)

Sampling Frequencies: 44.1KHz, 88.2KHz, 176.4KHz, 48.0KHz, 96.0KHz, 192.0KHz
UpSampler Frequencies: 44.1KHz, 88.2KHz, 176.4KHz, 48.0KHz, 96.0KHz, 192.0KHz, AUTO MODE
Based on TI SRC4392
Clock performances: +/- 2ppm typ. at 25°, +/- 10ppm at 60°
Digital Filter: Slow & Sharp mode, based on TI DF1706
De-emphasis: 44.1KHz, 48.0KHz, auto e manual mode
Connections Outputs: Line RCA output, XLR Balanced
Outputs Voltage: 3.0 V RMS (+10 dBV) RCA (at 0 dB), 6.0 V RMS (+16 dBV) XLR(at 0 dB)
Output Impedance: 200 ohm
Analogue Output Filter: 0,0 to 180 kHz +/- 3 dB
Analogue Stage Frequency Response: 0,0 to 2MHz +/- 3 dB
Configuration: Solid state
Oversampling: DF 1706 8 x Digital Filter
Oversampling Filter: User selectable Sharp & Slow Roll-off filter response.
D/A Converter: PCM 1704 Multibit 24 Bit D/A converter
I/V Conversion: I/V Conversion by proprietary topology with discrete component
Output Stage: Proprietary topology with discrete component, high linearity & low noise
Supply: 230 V AC / 50 Hz, (100V AC or 115 VAC / 50-60Hz in some country)
Dimensions (HxWxD): 126 x 215 x 350 mm
Weight: 5 Kg
Note: DAC Source with full remote control on PRE Version

http://www.normaudio.com/normaudio/en/

Sadurni Acoustics的 Staccato喇叭，外觀優美，完美連接各個各自獨立的配置，達到優異的時間校準，豐富的音調。渦輪喇叭(turbine horn)為她的獨特設計元素，聲音的透明度上具有和諧的對比、平衡的響應曲線，和線條清晰的結構。

http://my-hiend.com/audiotemp/2014/N...day/3.28.1.jpg

http://my-hiend.com/audiotemp/2014/N...day/3.28.2.jpg

四音路號角喇叭
結實的MDF號角

Frequency response: from 25 hz to 40 khz

Active Biased Xover

Multiamp ready

Sensitivity 110 db ABW* Separate Bass System
Configured to your room size
Active line Bass Xover included

Custom options available

http://sadurniacoustics.com

http://my-hiend.com/audiotemp/2014/N...yday/4.1.1.jpg

The Domain Omni PX1的設計目的是搭配發燒級功率擴大機使用。音樂訊號透過精密無源分音網路(passive crossover network)被分成高頻和低頻，此分音器使用最高品質的空心電感(air-core inductors)和聚丙烯薄膜電容器(polypropylene film capacitors)。PX1首選是以bi-amp的方式，也可以單一擴大機放大。PX1與4~8歐姆的額定擴大機完全兼容。

http://my-hiend.com/audiotemp/2014/N...yday/4.1.2.jpg

http://my-hiend.com/audiotemp/2014/N...yday/4.1.3.jpg

http://my-hiend.com/audiotemp/2014/N...yday/4.1.4.jpg

Specifications

Type	Passive Omni-directional Hybrid Electrostatic
ESL Transducer Configuration	3 x 120 Degree Continuous Curve
ESL Dispersion	360 Degree Horizontal x 16 Degree Vertical
ESL Membrane Area	5,000 cm² (active area)
ESL Membrane Type	Ultra thin tensioned Mylar film (3.8 µm)
Maximum SPL	105 dB at 2m on axis
LF Enclosure	Architectural anti-resonant aluminum casting
LF Alignment	Sealed (Qts 0.68)
LF Driver Area (Sd)	640 cm2 (effective area of all 3 drivers)
Crossover	450 Hz, LR4
Frequency response	30 Hz – 20 kHz (+/- 3 dB) Anechoic 20 Hz – 22 kHz Typical Room
Sensitivity	82 dB (1W/1m)
Impedance	8 Ohm (nominal) 2 Ohm minimum at 20 kHz
Input Power	500 W (RMS) 1000 W (program peak)
Power Input for ESL Supply	18 VDC, 300 mA (max)
Dimensions (H x Diam.)	1,443mm x 447mm (maximum envelope)
Weight	66 kg
Features	Dual 5-way gold-plated binding post Bi-wireable/Bi-amp capable Feet with non-marring polymer pads (no spikes required)

http://muraudio.com/

法國Lecontoure揚聲器，一款書架，兩款座地。

http://www.hifi.pl/grf/news/lecontoure-all.jpg

http://www.lecontoure.com/newE.html

Exemplar Audio Preamplifier WMPS XP-2

http://my-hiend.com/audiotemp/2014/N...yday/4.8.2.jpg

Exemplar Audio產品中有前級、DAC、綜合擴大機和線材，產品線齊全，而且擅長使用真空管設計，在很多產品都有見到真空管的設計，甚至利用真空管將Oppo 105做改機升級，相當特別。

上圖是Exemplar Audio的真空管前級擴大機WMPS XP-2，採用真正的全平衡設計，有兩條電源線應付左右兩個無負反饋設計的獨立電路，電路精確控制電壓與電流的調節，零部件皆採用高階材料，包含機箱與電磁和震動隔離設計，並在內部過濾由外部進來的電源。

http://my-hiend.com/audiotemp/2014/N...yday/4.8.4.jpg

http://my-hiend.com/audiotemp/2014/N...yday/4.8.3.jpg

http://www.exemplaraudio.com/

de Stemvork Yara Loudspeaker

http://my-hiend.com/audiotemp/2014/N...yday/4.8.5.jpg

de Stemvork是一家非常特別的公司，和High-end相關的服務是幫用家量身打造佈線，也推出自家造型非常特殊的喇叭，另外也提供吉他製造和維修等等。


http://my-hiend.com/audiotemp/2014/N...yday/4.8.6.jpg

http://www.stemvork.nl/

JARRE AeroBull

http://www.my-hiend.com/leoyeh2/2014a/daily001792.jpg

http://www.my-hiend.com/leoyeh2/2014a/daily001793.jpg

http://www.my-hiend.com/leoyeh2/2014a/daily001794.jpg

http://www.my-hiend.com/leoyeh2/2014a/daily001795.jpg

http://www.my-hiend.com/leoyeh2/2014a/daily001796.jpg

http://www.my-hiend.com/leoyeh2/2014a/daily001797.jpg

http://www.my-hiend.com/leoyeh2/2014a/daily001798.jpg

http://www.my-hiend.com/leoyeh2/2014a/daily001799.jpg

euro 999
Coming summer 2014!

• High definition sound.
• iPod / iPhone speaker plays all device equiped with lightning connector.
• Unique innovative outstanding design.
• Line in plays CD players or any devices playing music.
• Supports MP3, AAC, WMA, protected AAC, WAV.

FREQUENCY RANGE
50Hz to 20kHz +3db


DRIVE UNITS

• 1×133 mm (5,25 in) bass
• 2×57mm (2,25in) satellite

AMPLIFIER OUTPUT POWER

• 100W RMS @ 1% Total Harmonic
• Mid-tge 2 x 20W; subwoofer 1 x 60W

INPUTS

• Line-in 3.5 mm port
• Line-out 3.5 mm port
• mini usb update

MATERIAL & FINISHES

• ABS Chrome plated
• Painted

COMMENTS

• 3 colors
• IR remote control with backlight

WIRELESS FUNCTIONS

• BLUETOOTH
• APTX and A2DP codecs
• NFC technology

Unit Per Master

• 1

MASTER SIZE

• D84xW59xH83

Unit Size

• D82xW56xH80

Jarre AeroSkull HD

http://www.my-hiend.com/leoyeh2/2014a/daily001800.jpg

http://www.my-hiend.com/leoyeh2/2014a/daily001801.jpg

http://www.my-hiend.com/leoyeh2/2014a/daily001802.jpg

http://www.my-hiend.com/leoyeh2/2014a/daily001803.jpg

http://www.my-hiend.com/leoyeh2/2014a/daily001804.jpg

euro 399

High definition sound

• iPod / iPhone speaker plays all devices equipped with a lightning connector.
• Unique innovative outstanding design.
• Line in plays CD players or any devices playing music.
• Supports MP3, AAC, WMA, protected AAC, WAV.
• Estimated Launch: October 2013.

FREQUENCY RANGE

• 50Hz to 20kHz +3db

DRIVE UNITS

• 1×102mm (4,00in) bass
• 2×57mm (2,25in) satellite

AMPLIFIER OUTPUT POWER

• 80W RMS
• Mid-range 2 x 20W; subwoofer 1 x 40W

INPUTS

• 3.5mm mini jack
• mini usb update

MATERIAL & FINISHES

• ABS Chrome plated
• Painted

COMMENTS

• 11 colors
• IR remote control with backlight

WIRELESS FUNCTIONS

• BLUETOOTH
• APTX and A2DP codecs
• NFC technology

Unit Per Master

• 2

MASTER SIZE

• D36xW72xH38

Unit Size

• D35xW35xH35

Jarre AeroSkull XS

http://www.my-hiend.com/leoyeh2/2014a/daily001805.jpg

http://www.my-hiend.com/leoyeh2/2014a/daily001806.jpg

http://www.my-hiend.com/leoyeh2/2014a/daily001807.jpg

http://www.my-hiend.com/leoyeh2/2014a/daily001808.jpg

http://www.my-hiend.com/leoyeh2/2014a/daily001809.jpg

http://www.my-hiend.com/leoyeh2/2014a/daily001810.jpg

Euro 229

• High definition sound.
• Plays IPods and Iphones from every generation, as well as MP3 devices
• Unique innovative outstanding design
• Line in plays CD players or any devices playing music.
• Estimated Launch: November 2013.

FREQUENCY RANGE

• 100Hz to 20kHz +3db

DRIVE UNITS

• 2 X 27 mm + 1 X 57 mm

AMPLIFIER OUTPUT POWER

• 2 x 4,5W
• 1 x 9W subwoofer

INPUTS

• Line-in 3.5mm port
• Line-Out 3.5mm port

MATERIAL & FINISHES

• ABS Chrome plated
• Painted

COMMENTS

• Built-in Microphone
• 10 colors
• Update through USB
• 10 Hours battery

WIRELESS FUNCTIONS

• BLUETOOTH
• APTX and A2DP codecs
• NFC technology

Unit Per Master

• 4/8

MASTER SIZE

• D36xW36xH37

Unit Size

• D17xW17xH17


http://www.jarre.com

DeFF設表支援DSD的USB DAC "DDA-DAC1U"耳擴

http://my-hiend.com/audiotemp/2014/N...day/4.11.1.jpg

ディーフ公司開發出支援DSD 2.8M的高解析DAC耳機擴大機"DDA-DAC1U"，PCM格式可支援至96kHz/24bit。DSD的傳輸方式採用DoP(DSD Audio over PCM Frames)。內置的模擬放大電路則供應耳機輸出使用，達到一個簡單的系統，高密度、高解析度，及清晰力的聲音。

內部採用SAVITECH製的32bit USB Audio Controller "BRAVO-X SA9027"，以32bit處理24bit/96kHz的PCM檔案，並且支援DSD 2.8M格式。模擬電路採用左右獨立的模組，盡量減少耦合電容的使用，防止聲音劣化的可能性。

採用NE5534的運算放大器，具有優異的負載驅動能力，提供具有厚度、穩定度的聲音質量。外殼為高剛性的鋁加工，電路板也固定其上，無縫結構設計，盡可能降低振動的發生，避免影響到音質。

採用USB傳輸與充電，除了USB輸入端，並配置光纖輸入/輸出、RCA輸出、耳機輸出，可以彈性運用豐富的端子，亦可延伸其他產品的連接搭配。

主な仕様

オーディオ特性	SN比：115dB(USB→LINE OUT) 周波数特性：10Hz〜40kHz(LINE OUT, 0.5dB)
動作環境	対応OS：Windows 7, 8.x, Mac OS 10.5.7以降 対応機種：USB2.0規格に準拠したUSBポートを装備するPC/AT互換機、 Mac(Macintosh) ※asynchronouseモードおよび、isochronouseモードに対応
デジタル入力	USB：PCM 32, 44.1, 48, 88.2, 96kHz/16, 24bit　DSD：2.82MHz/1bit 光：32, 44.1, 48, 88.2, 96kHz/16, 24bit
デジタル出力	光：32, 44.1, 48, 88.2, 96kHz/16, 24bit
ヘッドホン出力	50mW+50mW (32Ω)
端子	入力：USB Type B（メス）×1, 光×1, ステレオミニジャック×1 出力：ヘッドホンジャック×2（標準, ミニ）, ステレオRCA×1, 光×1
最大外径寸法	幅110×高さ35×奥行き108(mm)
重量	約350g（ケーブル類は含まず）
付属品	USBケーブル(USB A – USB B)×1, 光ケーブル(角– 角)×1 ステレオRCAケーブル×1, 給電用USBケーブル×1

http://my-hiend.com/audiotemp/2014/N...day/4.11.2.jpg

http://my-hiend.com/audiotemp/2014/N...day/4.11.3.jpg

http://my-hiend.com/audiotemp/2014/N...day/4.11.4.jpg

http://my-hiend.com/audiotemp/2014/N...day/4.11.5.jpg

http://my-hiend.com/audiotemp/2014/N...day/4.11.6.jpg

http://my-hiend.com/audiotemp/2014/N...day/4.11.7.jpg

http://my-hiend.com/audiotemp/2014/N...day/4.11.8.jpg
http://deff.co.jp/

SGR Audio Elite Series Mk2 Power Amplifiers

http://my-hiend.com/audiotemp/2014/N...day/4.30.1.jpg

EL MK2擴大機是依據原有的模型建造。在整個Elite系列中，所有的擴大機都非常相似。隨著不同型號和額定功率，所有的電路是相同的，只有元件值改變，以滿足所需的電流需求。而隨著功率增加，電源的尺寸和設備數量增加。而較大的組件，使得箱體增大，就是這樣簡單。

http://my-hiend.com/audiotemp/2014/N...day/4.30.2.jpg

http://my-hiend.com/audiotemp/2014/N...day/4.30.3.jpg

http://my-hiend.com/audiotemp/2014/N...day/4.30.4.jpg

http://my-hiend.com/audiotemp/2014/N...day/4.30.5.jpg

http://my-hiend.com/audiotemp/2014/N...day/4.30.6.jpg

http://my-hiend.com/audiotemp/2014/N...day/4.30.7.jpg

http://my-hiend.com/audiotemp/2014/N...day/4.30.8.jpg

http://my-hiend.com/audiotemp/2014/N...day/4.30.9.jpg

http://my-hiend.com/audiotemp/2014/N...ay/4.30.10.jpg

http://www.sgraudio.com.au

http://www.my-hiend.com/leoyeh2/2014a/daily001848.jpg

Auralic Aries NEW

http://my-hiend.com/audiotemp/2014/N...day/5.3.12.jpg

NEW ARIES是作為網路儲存高解析音樂串流服務和使用者的DAC之間的橋樑，讓DAC能快速地得到無線傳輸的高解析度音樂，包含任何的取樣率、DSD檔案、雙倍DSD或DXD。

ARIES是AURALiC專有的Telsa硬體平台，內含一個1GHz的四核心ARM Coretex-A9處理器，1GB DDR3記憶體，4GB的內部硬碟。在Telsa平台上有25,000 MIPS解碼能力，足以處理任何格式，AAC、AIFF、ALAC、APE、DIFF、DSF、FLAC、MP3、OGG、WAV、WV和WMA。

ARIES的輸入包含雙頻高速無線網路，乙太網路和USB 2.0端子。輸出端有AURALiC擁有專利的ActiveUSB技術的USB端，AES/EBU，同軸和Toslink。USB傳輸的PCM檔案可從44.1kHz到387kHz，16bit到32bit，以及DSD，雙倍DSD。其他的數位輸出則根據S/PDIF標準，最大在24bit/192kHz。

http://my-hiend.com/audiotemp/2014/N...day/5.3.13.jpg

http://my-hiend.com/audiotemp/2014/N...day/5.3.14.jpg

http://my-hiend.com/audiotemp/2014/N...day/5.3.15.jpg

http://my-hiend.com/audiotemp/2014/N...day/5.3.16.jpg

http://www.auralic.com/en

The Bespoke Audio

http://my-hiend.com/audiotemp/2014/N...yday/5.5.9.png

對音響市場來說，The Bespoke Audio是一個新的品牌，但是卻已經是有點歷史的名字，過去他們已經為別人設計製造和供應音響產品到世界各地。現在他們則找到了一個新途徑，就是為自己設計製造音響產品。

製造的地點在Saville Row，這是一個擁有許多出色工匠的地方，這裡的工匠擁有出色的手工打造精密設備的能力，許多瑞士精錶都出自他們的巧手。

http://my-hiend.com/audiotemp/2014/N...day/5.5.10.jpg

他們製造前級已經有很長時間(前級應當是他們目前製造的主力)，你可以參考他們提供的建議，採用他們的現有產品，或是提出要求，跟他們一起設計屬於自己的前級，所有用家的需求，他們都會盡力滿足，為每個不同的用家量身打造。

http://my-hiend.com/audiotemp/2014/N...day/5.5.11.jpg

The Specification

Stereo Inputs - Six

Stereo Outputs - Two

Auxiliary Input/Output - One

46 discrete steps over a 67.5dB range in 1.5dB increments

Remote control of level

Extensive range of finish options and colours

http://thebespokeaudiocompany.com

New Klinger Favre studio speaker: Studio 17

http://my-hiend.com/audiotemp/2014/N...yday/5.7.1.jpg

這是一個監聽取向的喇叭，由Davis Acoustics設計的17CM碳纖維特製版。

對於監聽來說是非常準確的，但同時也能滿足發燒友的需求。

W 30 x H 69 x D 50 cm
Each speaker: 34kg (74.8 lbs) Each stand: 44kg (96.8 lbs)

Admissible power 100 Watts
Sensitivity 91dB/2,8v/1m
Impedance 4 Ohms

Appolito 2 ways speaker
2 KF designed carbon boomers 17cm
Die cast Alu Chassis vented below spider
Silk soft dome, neodynium magnet
Bi-wiring
Bass Reflex system, vent on the back of the speaker

Stark and heavy 30mm thick enclosure
Anti-vibration floating board system
Steady steel base, standard height 50cm et 75cm (other height on demand)
Laminated natural wood finish or satin color painting finish
Replacable frontplate (optional)

Bodor Audio

來自歐洲匈牙利的品牌，產品外觀和網站照片可看出濃濃的歐洲高雅簡約的作風，產品線相當齊全，從CD訊源、前級、後級、喇叭、線材都具備，而且整體風格一致。訊源和前後級擺在一起，遠看根本長的一樣。

http://my-hiend.com/audiotemp/2014/N...day/5.8.25.jpg

http://my-hiend.com/audiotemp/2014/N...day/5.8.26.jpg

http://my-hiend.com/audiotemp/2014/N...day/5.8.27.jpg

http://my-hiend.com/audiotemp/2014/N...day/5.8.28.jpg

http://my-hiend.com/audiotemp/2014/N...day/5.8.29.jpg

http://my-hiend.com/audiotemp/2014/N...day/5.8.30.jpg

http://my-hiend.com/audiotemp/2014/N...day/5.8.31.jpg

產品照片:

http://my-hiend.com/audiotemp/2014/N...day/5.8.32.jpg

http://my-hiend.com/audiotemp/2014/N...day/5.8.33.jpg

http://my-hiend.com/audiotemp/2014/N...day/5.8.34.jpg

http://my-hiend.com/audiotemp/2014/N...day/5.8.35.jpg

http://my-hiend.com/audiotemp/2014/N...day/5.8.36.jpg

http://my-hiend.com/audiotemp/2014/N...day/5.8.37.jpg

Bodor Audio: http://www.bodoraudio.hu/en

Wadax Labs 設計 MiZiK 系列 dPlay DA Pre、dVin、dStream

http://my-hiend.com/audiotemp/2014/N...day/5.9.18.jpg

MiZiK 系列包含三個產品:

dPlay DA Pre（DAC・Preamplifier）、dVin（Phono・AtoDConverter）、dStream（Network Transport）

dPlay DA Pre – versatile multiple input DAC (Digital/Analogue Converter) for use with CD type S/PDIF and computer sources via USB.
對應多種輸入源的數位類比轉換前級。

dVin – fully configurable vinyl record replay stage/A to D, with switchable EQ curves and rip-ready USB as well as S/PDIF output.
唱放，類比數位轉換機，可將黑膠的類比訊號轉為數位訊號，甚至可加上EQ後透過USB或S/PDIF轉錄至其他儲存裝置。

dStream – the heart of the MiZiK system, provides network interface and music file replay as well as an SSD storage option, but also provides the revolutionary feed-forward error cancellation technology (the MusIC process), which makes the MiZiK system outperform even the most expensive DACs.
MiZiK 系統的心臟，提供一個網路的操縱介面，內有 SSD 儲存硬碟，提供先進的零反饋誤差技術，讓 MiZik 的表現甚至比許多昂貴的 DAC 更好。


http://my-hiend.com/audiotemp/2014/N...day/5.9.19.jpg

http://my-hiend.com/audiotemp/2014/N...day/5.9.20.jpg

http://my-hiend.com/audiotemp/2014/N...day/5.9.21.jpg

http://my-hiend.com/audiotemp/2014/N...day/5.9.22.jpg

http://my-hiend.com/audiotemp/2014/N...day/5.9.23.jpg

http://my-hiend.com/audiotemp/2014/N...day/5.9.24.jpg

http://my-hiend.com/audiotemp/2014/N...day/5.9.25.jpg

http://my-hiend.com/audiotemp/2014/N...day/5.9.26.jpg

http://my-hiend.com/audiotemp/2014/N...day/5.9.27.jpg

http://my-hiend.com/audiotemp/2014/N...day/5.9.28.jpg

http://my-hiend.com/audiotemp/2014/N...day/5.9.29.jpg

http://www.mizikmusic.com

http://www.my-hiend.com/leoyeh2/2014a/daily001913.jpg

http://www.my-hiend.com/leoyeh2/2014a/daily001914.jpg

http://www.my-hiend.com/leoyeh2/2014a/daily001915.jpg

http://www.hifiart.cz

ALTEC LANSING sound speaker OMNI

Altec Lansing 360 度發聲喇叭，共有三單體，中音、低音和頂部的高音單體。

中間使用陶瓷結構區隔。

http://my-hiend.com/audiotemp/2014/N...day/5.23.1.jpg

http://my-hiend.com/audiotemp/2014/N...day/5.23.2.jpg

http://my-hiend.com/audiotemp/2014/N...day/5.23.3.jpg

http://my-hiend.com/audiotemp/2014/N...day/5.23.4.jpg

http://my-hiend.com/audiotemp/2014/N...day/5.23.5.jpg

http://www.alteclansing.com

High Fidelity Power Cable

使用 Magnetic Conduction ( 電磁導電 ) 技術製作的電源線，Magnetic Conduction 是一個由 Magnetic Innovations LLC 公司所研發擁有的專利技術，提供訊號獨特的磁性以及導電路徑。


Ultimate Power Cable (基本款)

http://www.my-hiend.com/audiotemp/20...day/5.26.1.jpg
First power cable, experience the amazing effect of Magentic Conduction technology.
$6,900 for 1m (each additional 0.5 m is $675)


Ultimate Reference Power Cable (進階款)

http://www.my-hiend.com/audiotemp/20...day/5.26.2.jpg
The Ultimate Reference has a greater and even more powerful Magentic Conduction effect.
$10,900 for 1m (each additional 0.5 m is $675)


Ultimate Reference Power Cable (+ Rhodium) (銠金屬連接端特製款)

http://www.my-hiend.com/audiotemp/20...day/5.26.3.jpg
Includes our custom rhodium connectors.
Magnetic Conduction wave guides are in a special Helix configuration.
$12,900 for 1m (each additional 0.5 m is $675)


http://www.highfidelitycables.com/product-power.html

Acustica Applicata DE ANTONI ALUMINIUM CABLES 純鋁線材

http://www.my-hiend.com/audiotemp/20...day/5.26.4.jpg

非常特別的線材，標榜以純鋁製作，以 99.999 % 純鋁作為導體，官網稱因為鋁為無磁性以及 don’t oxidize ，所以可以帶來很好的聲音，De Antoni 為此線材的設計師，花了多年研究，並且以手工製造而成。

http://www.my-hiend.com/audiotemp/20...day/5.26.5.jpg

http://www.my-hiend.com/audiotemp/20...day/5.26.6.jpg

http://www.my-hiend.com/audiotemp/20...day/5.26.7.jpg

http://www.acusticaapplicata.com

Blackwood Speakers

專門製作喇叭，皆採取主動式 D 類擴大。目前有 ONE ( 最好的旗艦 )，ONE / 2，THREE，FIVE，SIX。

最下方兩張照片即為旗艦 ONE 。

使用鑽石球形高音，鑽石球形中音，鋁製三明治球形中低音，鋁製三明治球形超低音( 側面 )，兩個前面板低音孔。D 類單邊 800 瓦主動擴大，響應頻率 20 Hz ~ 50 kHz，限量 100 對。

http://www.my-hiend.com/audiotemp/20...ay/5.26.22.jpg

http://www.my-hiend.com/audiotemp/20...ay/5.26.23.jpg

http://www.my-hiend.com/audiotemp/20...ay/5.26.24.jpg

http://www.my-hiend.com/audiotemp/20...ay/5.26.27.jpg

http://www.my-hiend.com/audiotemp/20...ay/5.26.25.jpg

http://www.my-hiend.com/audiotemp/20...ay/5.26.21.jpg

http://www.my-hiend.com/audiotemp/20...ay/5.26.26.jpg

http://www.blackwood.hr

Courbe Speakers

http://www.my-hiend.com/audiotemp/20...ay/5.26.31.jpg

H : 1216 mm
W : 503 mm
額定阻抗 : 4 ohms
頻率響應 : 24 - 30000 Hz
靈敏度 : 88 dB

http://www.my-hiend.com/audiotemp/20...ay/5.26.32.jpg

http://www.my-hiend.com/audiotemp/20...ay/5.26.33.jpg

Vertex AQ Pico Component Grounding Block 接地盒

http://www.my-hiend.com/audiotemp/20...day/5.27.1.jpg

RCA 端子，並附帶兩條 RCA 連接線，另一端可為 XLR、RCA。該線使用鍍銀無氧銅製作，PTFE 絕緣，為防止嗡嗡聲，內部兩條接地線不相連。

此接地盒每個接地連接都引導至聲學迷宮，提供一個低阻抗的聲音路徑至迷宮結構裡。在其中，無數的聲波以無損干擾分解了振動，並連接進到了使用特殊方法分解訊號波型的 feed wire 中，在一次使用無損干擾和數學方式的 antenna stub 理論處理。整個再以樹脂和被動 EMI 吸收。

http://vertexaq.com

Thixar SMD modular rack system

http://www.my-hiend.com/audiotemp/20...day/5.28.1.jpg

http://www.my-hiend.com/audiotemp/20...day/5.28.2.jpg

http://www.my-hiend.com/audiotemp/20...day/5.28.3.jpg

http://www.thixar.de

Viva Audio Master Horn

http://www.my-hiend.com/audiotemp/20...day/5.28.4.jpg

五音路設計

超低音、號角中低音、號角中音、號角高音、超高音。

Viva 的喇叭裡並沒有設計分音器或任何濾波器，所以它必定需要用自家特殊設計的擴大機來推動，而為了達到最好的效果，也必須要由 Viva 的工程人員來設定安裝。外觀上的木皮和顏色可以依照用家需求做任何的改變。

http://vivaaudio.com

Fire Box Bloom FM Bluetooth Wellies

These boots are made for dancing

Limited Edition of 10 pairs.
Integrated Bluetooth speaker and splashproof carry pouch
Free 6 month Full Bloom subscription

http://www.my-hiend.com/audiotemp/20...day/5.30.1.jpg

http://www.my-hiend.com/audiotemp/20...day/5.30.2.jpg

http://www.my-hiend.com/audiotemp/20...day/5.30.3.jpg

http://www.my-hiend.com/audiotemp/20...day/5.30.4.jpg

http://www.firebox.com/product/6114/...etooth-Wellies

Zu Modern Console No. 1

http://www.my-hiend.com/audiotemp/20...day/5.30.5.jpg

Zu Modern 結合工藝和科技，設計製造出令人激賞的音樂系統水準。Console No.1 看起來相當的華麗，且其表現同樣優異，好的聲音、頻寬寬廣、高度的保真度，讓音樂充滿整間屋子，外觀還像是優美的家具一樣融入整體視覺感受。

箱體分為兩部分，上半部使用兩個全音域的單體於兩側，將低音炮的部分設置於下半部，兩部分中間使用類似磁浮的設計相隔，可以降低低音炮對全音域單體的振動影響，上半部的箱體透過力學和結構工程設計，減少箱體諧振。

http://www.my-hiend.com/audiotemp/20...day/5.30.6.jpg

http://www.my-hiend.com/audiotemp/20...day/5.30.7.jpg

Specifications / Electroacoustic, Basic

Bandwidth: 20–20,000 CPS
Impedance: 8 Ω
Efficiency: 99 dB-SPL
Dynamic Range: 120 dB SPL
Full-Range Recommend Power: 2–100 W/Ch
Full-Range Efficiency: 99 dB-SPL
Full-Range Bandwidth: 60–20,000 CPS
Full-Range Impedance: 8 Ω
Subwoofer Recommend Power: 500–1000 W
Subwoofer Efficiency: 80 dB-SPL
Subwoofer Bandwidth: 20–160 CPS
Subwoofer Impedance: 8 Ω

http://hub.audiogon.com/blog/2014/05/28/zu-modern-console-no-1

Aurorasound Preda Line Stage Preamplifier

http://www.my-hiend.com/audiotemp/20...ay/5.30.13.png

Preda 是一台前級擴大機，採用類比輸入 / 輸出，並使用最先進的變壓器音量控制系統，使用超可靠的繼電器。不同於電阻式衰減音量控制，變壓器系統沒有任何訊號的損失，實現精密的音量控制。Aurorasound 新開發的獨立放大模組，實現超寬帶、低失真、平衡輸入，並在搭配任何的後級擴大機皆能有優異的訊號控制能力。

Preda 採用獨立的供電模組，擴大模組、輸入和輸出模組和左右獨立聲道模組。鋁製箱體底盤、控制旋鈕，抗震的箱體設計用以實現最高水準的音樂重播，絕對可做為一個高保真音樂系統中的優秀前級。

INPUT	Line-level RCA Unbalance　x4, XLR Balance x2
OUTPUT	RCA Unbalance x1, XLR Balance x1 （#2HOT is convertible to #3 HOT with Global Phase Invert ）
GAIN	10dB, -6dB at Gain select SW on.
Frequency Response	5Hz . 100kHz -1.5dB
Total Harmonic Distortion	0.008% A weighted
INPUT/OUTPUT Impedance	Input 56kΩ / Output 47Ω
Function	54Step Volume Contro,、 more -16step at Low Gaion mode, L/R Balance Control、Mute、Display On/Off Input Selector x6, Global Phase Reverse、Remote Control for those Functions
Size and Weight	W 420 x D 330 x H 90mm、 10.8kg AC100-120V or AC220-240V

http://www.my-hiend.com/audiotemp/20...day/5.30.8.jpg

http://www.my-hiend.com/audiotemp/20...day/5.30.9.jpg

http://www.my-hiend.com/audiotemp/20...ay/5.30.10.jpg

http://www.my-hiend.com/audiotemp/20...ay/5.30.11.jpg



http://www.aurorasound.jp/

H&A VOBA K.O. 1 Pure Class A amplifier

http://www.my-hiend.com/audiotemp/20...yday/6.3.4.jpg

http://www.my-hiend.com/audiotemp/20...yday/6.3.5.jpg

http://www.my-hiend.com/audiotemp/20...yday/6.3.6.jpg

http://www.my-hiend.com/audiotemp/20...yday/6.3.7.jpg

http://www.hifiart.cz

Audiograde Calora

http://www.my-hiend.com/audiotemp/20...yday/6.5.3.jpg http://www.my-hiend.com/audiotemp/20...yday/6.5.4.jpg

Audiograde 特別開發的手工喇叭 Calora 使用特殊的PolyGrade™ (polymer concrete)，聚酯混凝土製成全密封箱體，這比起木製的箱體要在緊密許多，即使在極端條件下仍能保持無內部振動。

SSX™ Sweet Spot Expansion，為使用全陶瓷的導波 (waveguide) 單體。

全手工製成，可以依照客製調整外觀顏色和光澤。

Audiograde Calora 有兩種形式，被動式喇叭和主動式喇叭。

四音路五單體設計，使用 PolyGrade™ 無共振箱體材料，Mundorf 手工製作分音器、空氣線圈和電容。Furutech 製等離子塗層鍍金鋁製連接端子。可選擇 accuton© 鑽石高音及中音單體。

2 x 25 cm bass driver in fully enclosed, seamless cast housing

1 x 17 cm all-ceramic accuton© low-mid driver in fully enclosed, seamless cast housing

1 x 50 mm all-ceramic accuton© mid driver with SSX™ Sweet Spot Expansion waveguide

1 x 25 mm all-ceramic accuton© mid driver with SSX™ Sweet Spot Expansion waveguide

主動部分為

4 x 400 W bridged output stages Class-D

DSP-based Loudspeaker Management System

Digital Room Control Processor

96 kHz / 24 bit, automatic sample rate converter

http://www.my-hiend.com/audiotemp/20...yday/6.5.5.jpg

http://www.audiograde.de

EXOGAL Audio Comet Computer DAC

http://www.my-hiend.com/audiotemp/20...yday/6.6.5.jpg

由前 Wadia 工程師 Jim Kinne 在 2013 年創立的新品牌，EXOGAL Audio。

照片為 Comet Computer DAC，是一款有平衡、非平衡輸出，可連接各種訊源的 DAC 產品。訊號可經過 EXOGAL 升頻和濾波技術處理，非同步 USB 輸入可支援至 32-bit/192kHz PCM，提供真正的平衡單端類比輸出。

Comet Computer DAC 可透過無線控制端，如遙控器、行動裝置 (Apple 產品、Android 手機、平板電腦)做控制。

Features

Asynchronous USB, AES/EBU, SPDIF, Toslink, and line level Analog inputs

Direct connection analog outputs with 32-bit Digital Volume Control

Analog Outputs: one pair balanced (XLR), one pair unbalanced (RCA), one stereo Headphone

Single ended and balanced analog outputs can be used simultaneously. Single ended outputs can be programmed as stereo, or center/subwoofer operation. Single ended outputs have a programmable offset level from balanced outputs

Works with the EXOGAL Console wireless aluminum remote system console or EXOGAL SmartRemote (SR-71) an Android phone or tablet (running 4.2 or higher with BLE support) or an iPad, iPhone 4s or newer, or iPod Touch.

Specifications

Digital Inputs: AES/EBU on XLR, SPDIF on 75Ohm BNC, Toslink, USB-B, Analog on isolated RCA

Analog Outputs: One Pair Balanced (XLR), One Pair Unbalanced (RCA)

Weight: 9.2 lbs (4.2 kg)

Dimensions: 1.875 x 7.45 x 11.5 in., (47.6 x 190 x 292 mm)

Finish: Anodized Aluminum

Upgrades Available:

High Speed upgrade includes 384k and DSD capabilities

USB System Requirements

Apple: OS 10.6.4 or higher - No driver needed
PC: Windows XP SP3, Windows VIsta SP2 or higher, Windows 7, Windows 8

http://www.my-hiend.com/audiotemp/20...yday/6.6.4.jpg

http://www.my-hiend.com/audiotemp/20...yday/6.6.6.jpg

http://www.my-hiend.com/audiotemp/20...yday/6.6.7.png

http://www.my-hiend.com/audiotemp/20...yday/6.6.8.png

http://www.exogal.com

Fundamental Reference Monitor Speaker RM10

http://www.my-hiend.com/audiotemp/20...ay/6.11.10.jpg

具有優異監聽喇叭的特點，目的能夠在錄音室聽到高保真、平坦響應曲線和重現聲場、聲像，局有足夠的聲壓、夠寬的頻帶。

使用 5 吋的兩音路同軸單體，精心特製的低音單體，能夠在 25 Hz~ 25 kHz 中發揮得當，不需要龐大的身軀，性能遠超一般書架喇叭的限制。

採用簡單的分音器設計，當中只有一個特製電容，搭配精心設計的低音單體，得到損失微小的音樂、平坦的相位響應。

利用內部箱體結構的打摺，消除箱體駐波，內部不使用吸音棉，內部線路使用無絕緣的 OFC 裸線。

前擋板使用 25 mm 的鋁合金打造，下緣還有一個金屬接地的角錐，和箱體主體的另兩個接地角椎形成三角接地。

箱體主體使用 21 mm 的樺木，相對於前擋板為自然且溫和的阻尼材質，適度平衡內部損耗及剛性，活力重現聲音本質。

從接到訂單到製造、組裝皆為由設計師 "鈴木 哲" 手工精心打造，這代表的是一種承諾和品質。

http://www.my-hiend.com/audiotemp/20...day/6.11.5.jpg http://www.my-hiend.com/audiotemp/20...day/6.11.9.jpg

http://www.my-hiend.com/audiotemp/20...day/6.11.1.jpg

http://www.my-hiend.com/audiotemp/20...day/6.11.2.jpg

http://www.my-hiend.com/audiotemp/20...day/6.11.3.jpg

http://www.my-hiend.com/audiotemp/20...day/6.11.4.jpg

http://www.my-hiend.com/audiotemp/20...day/6.11.8.jpg

http://www.fundamental.jp

Bodor Audio Presence CD Player

http://www.my-hiend.com/audiotemp/20...ay/6.11.13.jpg

PRESENCE CD-PLAYER – SPECIFICATIONS
DESIGNER | Csaba Finta, Viktor Pucsek
AUDIO SOUND DESIGNER | Ferenc Bodor
DIMENSIONS W x H x D | 44 x 16 x 44 cm/ 5 kg
MATERIALS | cabinet: mdf, cover: synthetic leather
COLOURS | optional
PCM SAMPLING RATE | 44.1 kHz / 96 kHz
RESOLUTION | 16-24 bit
FREQUENCY RANGE | 20 - 20.000 Hz (-3 dB)
DYNAMIC RANGE | 112 dB
THD+N | 0.002 %
MECHANISM | Triple-beam holographic laser multi-speed CD-ROM transport
FORMATS | CD Audio (CD-DA)
MEDIA | CD-R, CD-R/W
DIGITAL OUTPUT | S/pdif Coax & AES/EBU XLR
ANALOG OUTPUT VOLTAGE | 2 Vrms @ 0 dB
ANALOG OUTPUT TYPES | RCA and XLR
ANALOG OUTPUT IMPEDANCE | 47 kohm, 600 ohm
LINE POWER | AC 230 V-240 V, 50/60 Hz
POWER CONSUMPTION | 50 W max.
STANDBY POWER CONSUMPTION | < 5 W (energy economy)

http://www.my-hiend.com/audiotemp/20...ay/6.11.12.jpg

http://www.bodoraudio.hu

Unique Lincoln Walsh Double Ohm F Loud Speakers - One of a Kind Ohm Acoustics

http://www.ohmspeaker.com/

http://www.my-hiend.com/leoyeh2/2014b/daily002233.jpg

http://www.eryksc.com/

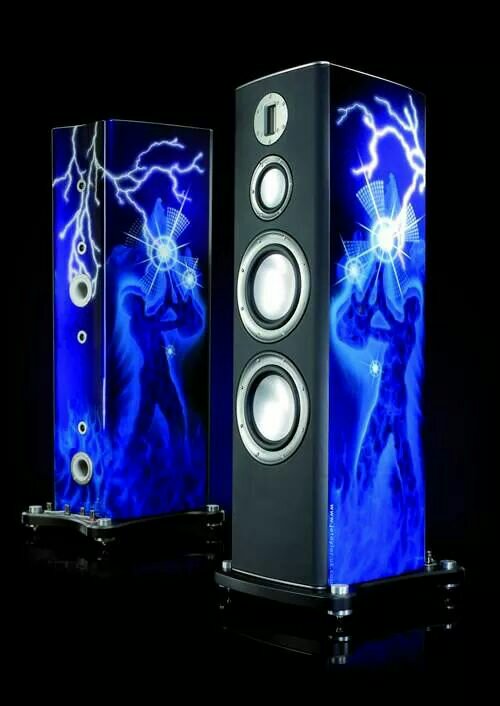

附件 24157

附件 24158

Send from Sony Z2 by tapatalk app

http://www.jotaylor.uk.com/rock_loudspeakers.html

附件 24160

Send from Sony Z2 by tapatalk app
