http://www.stereosound.co.jp/pc_audi...isampling.html
可列印查看
http://store.antelopeaudio.com/prod_...ltikus_big.jpg
Your Price: EUR 3,495.00
Product Description
Zodiac Gold is an advanced digital audio converter with an elegant aluminum unibody remote control. Custom designed digital and analog circuits deliver pristine audio with keenly articulated pitch and a spectacular soundstage. Also built-in is Antelope's 64-bit clocking technology used by the world’s top audio engineers. A custom designed USB controller chip streams digital audio at rates up to 384khz. 8 input sources with auto-detection of active channels provide the flexibility required in the modern listening environment. The dual-stage headphone amp delivers effortless sonic performance.
A sophisticated and powerful DAC, Pre-Amp and Headphone Amp for refined tastes.
Features:
Custom USB chip streams audio up to 384kHz
Unibody machined aluminum remote control
64-bit Acoustically Focused Clocking (AFC)
Ultra Linear, Dual Stage Headphone Amps
De-jittered, re-clocked Digital Audio Outputs
Precision gold-relay stepped attenuator control
Accurate Level Display for Main Volume
129dB Dynamic Range
Mute and Mono summing functions
VOltikus 3R regulated linear power supply
Technical Specifications
Dynamic Range:
129 dB
THD + N:
0.0004 %
USB:
2.0 Hi-Speed. Data stream up to 480Mbits/384kHz, Type B
Clocking System:
4th Generation Acoustically Focused Clocking 64 bit DDS Oven Controlled Crystal Oscillator
Clock Stability:
< +/- 0.02 PPM, oven controlled at 64.5 C
Clock Ageing:
< 1 ppm per year
Sample Rates:
44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, (352.8kHz, 384kHz through USB only)
Inputs:
BNC Word Clock: 44.1 - 384 kHz
1x AES/EBU XLR: 44.1 - 192 kHz
2x S/PDIF RCA: 44.1 - 192 kHz
2x RCA Analog: -10dBv Unbalanced (2V rms max)
2x ¼” TRS Analog: +4dBu Balanced (26 dBu max)
2x Optical TOSLINK
Outputs:
2x Analog XLR. Balanced, fully-differential drive. Trimmable 8 to 26 dBu @ 0dBFS. Preset to 22dBu. 56 Ω to GND.
1x AES/EBU De-Jittered, re-clocked Digital Output. 110 Ω.
2x S/PDIF De-Jittered, re-clocked Digital Outputs. 75 Ω.
2x Analog RCA: -10dBv Unbalanced, 2Vrms max, 56 Ω.
2x Headphones: 16 dBu @ 0dBFS. 120 or 0 Ω switchable.
Operating Temperature:
0-50 C, 32-122 F
Weight:
2 kg, 4.4 lb
Dimensions (Approx):
165mm (W) x 112mm (H) x 190mm (D)
6.5”(W) x 4.4”(H) x 7.5”(D)
Power Supply:
Input: 100-240VAC.
Output: 18VDC, 15W.
￥56,700（税込）
http://www.rasteme.co.jp/product/aud...14-top-big.jpg
http://www.rasteme.co.jp/product/aud...4-rear-big.jpg
http://www.rasteme.co.jp/image/features.gif
http://www.rasteme.co.jp/product/aud...d14/p/pop2.gif http://www.rasteme.co.jp/product/aud...p/pop-tran.gif RCA、BNC同軸出力およびAES/EBUバランス出力にはデジタルオーディオインタフェース用に設計されたジッターが小さく、立ち上がり速度が高速な、各種デジタルオーディオ規格に適合した絶縁（フローティング）型のパルストランスを各出力段に実装。
デジタルオーディオ用のパルストランスにより、ノイズを除去し、デジタルオーディオ信号を正しく出力します。
http://www.rasteme.co.jp/product/aud.../p/pop-osc.gif Asynchronous (非同期式)モードと高精度・常温偏差±1.0ppmのTCXO（温度補償型水晶発振器）により高サンプリング、高ビットレートの音声データを劣化なく、理想のデータとして処理します。http://www.rasteme.co.jp/product/aud.../p/pop-asy.gif Asynchronous（非同期）モードにより、無損失デジタルオーディオ（Bit-perfect Digital Audio）で忠実な音を伝達します。
常温偏差±1.0ppmの高精度により音声劣化の要因でもあるクロックジッターを抑制させ、原音に忠実でクリアな音質を実現しています。
http://www.rasteme.co.jp/product/aud.../p/pop-usb.gif USB AUDIO 2.0（High-Speed）のデジタル音声入力に対応。
USBオーディオ信号は絶縁（アイソレート）されており、パソコンからの5V電源リップルノイズを遮断し、Asynchronous (非同期式)モードにより、無損失デジタルオーディオ（Bit-perfect Digital Audio）で忠実な音を再生します。
USBはWindows XP / Vista / 7以降対応（専用ドライバ付属）、MAC OS 10.6.3以降のMAC OS標準USBオーディオドライバに対応し、最大192kHz / 24ビットに対応します。
http://www.rasteme.co.jp/product/aud...4/p/pop-os.gif USB音声入力はWindows XP/Vista/7以降対応（32/64bit対応専用ドライバ付属）、MAC OS 10.6.3以降のMAC OS標準USBオーディオドライバに対応し、最大192kHz24ビットに対応。
http://www.rasteme.co.jp/product/aud.../p/pop-out.gif デジタル出力は光（OPTICAL（TOSLINK））と同軸（COAX）とAES/EBUを装備し、一般オーディオ製品からプロ用機器まで、様々な機器への出力が可能です。
また、同軸（COAX）はRCAコネクタのほかに、BNCコネクタも実装しています。
http://www.rasteme.co.jp/product/aud.../p/pop-api.gif Windows用専用ドライバはASIOにも対応し、Vista / 7 ではWASAPIも使用可能で、より高品位な音を楽しめます。
（ASIO、WASAPIの使い方については各音楽プレーヤーに依存しますので、各音楽プレーヤーのホームページなどを参照してください。）
http://www.rasteme.co.jp/product/aud...p/pop-oled.gif 96×96dotのフルカラー有機ELディスプレィ（OLED）を搭載し、入力サンプリングレートやレベルメーター表示が可能です。
搭載のOLEDは視野角が広く、液晶のように映り込みもないので、どの位置から見てもはっきりと見ることが出来ます。
OLEDの画面は複数の表示パターンを前面のスイッチで選択可能で、完全に消灯する事も可能。
http://www.rasteme.co.jp/image/mij.gif RUA220は自社で開発から、設計・製造を行っている日本製です。
http://www.rasteme.co.jp/product/aud...14/rudd14.html
when SYNPOP queen:( meets SYNPOP king, late in their 60's:O.
long live Synpop, the frontier of digital music
引用:
作者: 小葉
簡單就好的前提~~~問個笨問題~~
各位建議建構簡單的軟體儲存與撥放的器材是什麼???
是不是還要外加個usb dac????與一般的dac有何不同????(sweat)
佐哥引用:
作者: 小佐
目前方便的是olive,有硬碟 .......
usb dac 就一般的dac,多了usb數位輸入....
sp007哥~~若一部筆電如何???好像很遜~~~~~(sweat)引用:
作者: sp007
小哥引用:
作者: 小佐
如果檔案放nb,弄台squeezebox就可以了
或是加台usb dac,
如果nb有1394,可以選weiss....
不然用usb轉換數位介面,這樣就可以使用原有的dac....
筆電不會比較遜色喔引用:
作者: 小佐
因為少了很多線材的干擾, 論簡單絕比桌上型主機方便
國外的討論也曾看到過, MAKBOOK PRO的聲音並不會輸給MAC MINI
NB+DAC, 算是最少成本最大彈性的作法了吧?
這兩天實際用舊筆電BENQ S31接a100耳機發現~~還是會有小小哈母的聲音~~
請問若以USB輸出數位訊號也會有這哈母的聲音嗎??
:)
應該不會有.....
http://www.pthc.chc.edu.tw/learn/dp8...1%E4%B8%98.jpg
引用:
作者: 小佐
http://www.antelopeaudio.com/en/images/volticus_06.jpg
Voltikus is a sleek heavy-duty Power Supply Unit (PSU) designed to perfectly match your Zodiac DAC. Carefully tailored to deliver uncompromised power, Voltikus helps Zodiac achieve the punch and sonic richness of deep lows, a full range of mids, and tightly defined highs. This degree of performance is accomplished by incorporating a hefty, custom-wound, electrostatically shielded toroidal transformer followed by a unique concept of three cascaded power regulators. A precision laser-trimmed voltage reference (LT1021) serves as the backbone of this discrete design, achieving the stability impossible with off-the-shelf voltage regulators. Voltikus is a true engineering breakthrough from Antelope's respected team of high-end audio experts.
Audiophile grade PSU perfectly matching Zodiac DACs in aesthetics and performance
Unique multi-stage linear regulator topology achieves vastly superior stability
Toroidal transformer with custom electrostatic shield suppresses power line disturbances
Ground / Lift switch helps eliminate hum and buzz caused by ground loops
Wide (90-250V) input voltage range ensures dependable operation under varying line conditions
Advanced discrete design dispenses with the need for noisy off-the-shelf voltage regulators
Robust sturdy construction with custom machined aluminum front panel
Input Power nominal 100-120/220-240 VAC,50 or 60 HZ actual 90-264 VAC, 50 or 60 HZ Fuses 0.8A, 250 VAC, 5mm x 20mm, Type F Input Power Cord 3-Wire grounded / Lifted option Terminals C14 panel mounted male connector (inlet)
Output Voltage 18VDC Power (maximum) 18W Terminals Mini XLR
Safety Features Overlod/short circuit protection Automatic power limit / short circuit protection Input line Protection Fuse on both hot and neutral
Environmental Operating Temperature 0-50 °C
http://www.antelopeaudio.com/en/products_volticus.html
用來Rip藍光聲音的軟體
Blu-ray player with at least Profile 2.0 is required.
The Blu-ray player must be connected via Ethernet or WiFi to the user's home network.
Currently Blu-ray drives are available starting at $49 (internal) and $99 (USB External).
http://www.pureaudio-bluray.com/wp-c...tle_grafik.jpg
http://www.pureaudio-bluray.com/?page_id=403
http://www.computeraudiophile.com/co...u-ray-Easy-Way
冰精靈與ChoiceOnly聲音都很棒,冰精靈較延伸富光澤,ChoiceOnly較冷而純淨引用:
作者: 小葉
冰精靈讀寫速度比ChoiceOnly快一倍以上,也便宜不少,CP值較高
這個mShuttle 似乎是專屬pureaudio-bluray 推的藍光碟, 好像不是"通用"的Rip 藍光碟軟體說:^)
要通用應該還是要找猴子和狐狸
引用:
作者: 小葉
http://forum.ecoustics.com/bbs/messa...381/674946.jpg

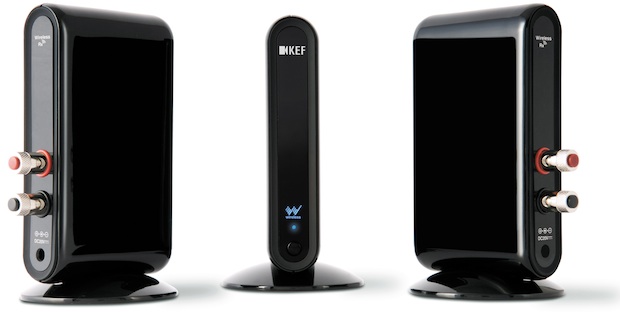

KEF has announced the Universal Wireless System 2.0 that transmits CD quality sound to two speakers, using advanced, proprietary technology to eliminate interference with potentially conflicting devices. As well as featuring enhanced software and a more powerful transmitter, the all-new KEF Universal Wireless System 2.0 is available at £450.00.
CD Quality Sound
KEF Universal Wireless System 2.0 delivers CD quality sound -- providing, of course, the source is also CD quality and transmissions are not significantly degraded by physical barriers. There is no need for wiring between speakers, as it includes two receiving units, each of which features a 50W amplifier that ensures rich sound with minimal latency.
Eliminates Interference
To guard against interference from devices such as Wi-Fi routers, microwave ovens and mobile and cordless phones, KEF Universal Wireless System 2.0 uses a narrow signal band. Coupled with KEF's advanced error correction technology, this results in exceptionally robust delivery of audio between the transmitter and receiver.
http://forum.ecoustics.com/bbs/messa...381/674947.jpg
"The KEF Universal Wireless System 2.0 is ideal for music and movie lovers who wish to eliminate wiring between amplifiers and speakers, allowing them to create an outstanding listening environment without the need for clutter or compromising sound quality. It can also transmit sound from
devices like computers and MP3 players, with a signal capable of powering speakers in nearby rooms and even outdoors."
-- Steve Halsall, Managing Director,
KEF's UK Business Unit.
KEF Universal Wireless System 2.0 also employs technology known as Advanced Frequency Hopping Spread Spectrum (AAFHSS). A detector continually searches for potentially conflicting transmissions, and if any are found the system "hops" to a different channel, keeping the signal stable. The process takes just milliseconds, so users don't notice it is happening.
Ideal for Home Cinema -- and Stored Music Collections
KEF Universal Wireless System 2.0 dovetails perfectly with most audio speakers, and electronic components with 3.5mm standard audio jack connections. Primarily designed for home cinema enthusiasts who do not want AV wires trailing across the room to rear speakers, it is ideal for 5.1 home cinema systems, and a second KEF Universal Wireless System 2.0 set can enable expansion to a 7.1 system, with no signal conflicts. KEF Universal Wireless System 2.0 works with popular modern audio players such as PCs and iPods -- allowing users to enjoy stored music collections on their premium speakers.
Setup is simple. Users connect the transmitter to a sound source, and each of the two receivers to a speaker and a power outlet, and KEF Universal Wireless System 2.0 is ready to deliver sound -- with no wizards to run, buttons to press or dials to turn.
New Headphone/Pre-Amp with USB/DAC from the "Midnight Blue" seriesInputs : Coaxial, USB, Line 1, Line2
Model 4733 Midnight Blue
Headphone/Pre-Amplifier
http://www.sakurasystems.com/graphics/4733-1.jpg
Out puts : 1x Speaker, 1x Headphone, RCA Jack
Output power 2W/ Ch. at 8 ohm
Dimension 123W x 96H x 208D
Weight : 1.7kg
MSRP $1750The second of the Midnight Blue series is probably one of the most flexible headphone/pre-amplifier in the market today. It is a headphone/pre amplifier with USB/DAC on board and has 2W output, meaning it can drive small computer speakers without additional power amp. It is an active pre-amplifier with USB, coaxial and 2 x RCA inputs. The circuit board is Junji's proprietary simple design.
Sound? You do not need to ask if you are already familiar with any of 47 Lab products.
目前的訊源是fm tuner + SACD player
目前計劃從桌上型電腦連接usb dac到擴大機
但這個不會是主要的訊源,推測聲音會比SACD player差
但如果想完全數位流呢?
出售SACD player，換成筆電+usb dac
fm tuner維持不變
那我那些SACD怎麼辦?如何轉檔?(sweat)
SACD還有CD層
不過何必賣SACD呢....
我就都有呀.....
無線通訊進入「秒殺時代」！清華大學物理系教授潘犀靈領導國科會研究團隊，成功利用一千億赫茲（100GHz）載波頻率研發出傳輸速率高達每秒二百億位元（20Gbit/s）無線通訊關鍵技術和系統，可在一秒內下載十部片長兩小時的高畫質ＤＶＤ電影，成為全球速度最快的無線通訊系統。
與現有３Ｇ手機傳輸速率每秒二百萬位元比較，國科會研究團隊研發的「超高速光電無線通訊技術」，傳輸速率是３Ｇ手機的一萬倍，直接帶動無線通訊技術向前跨越兩個世代。
國科會工程技術發展處長李清庭指出，由潘犀靈領軍的清華大學、交通大學和中央大學跨校研究團隊，在超高頻超高無線通訊領域已建立許多關鍵技術，居全球領先地位，有機會發展成為都會型無線通訊網路主流。
潘犀靈表示，隨著智慧型手機普及和超高畫質３Ｄ影像時代來臨，現有３Ｇ或研發中的４Ｇ無線通訊技術，都很難滿足消費者在未來十年內對頻寬和速度的使用須求。
潘犀靈指出，光纖網路雖然擁有足夠頻寬，卻缺乏無線通訊的機動性，「超高速光電無線通訊技術」結合有線與無線兩種通信系統，可以把傳輸速率提升到每秒二百億位元，而且傳播到幾十公里外，也不會影響訊號清晰度。
日韓已投入六百億赫茲無線通訊技術研發，預估在五年內上市，清華大學光電研究所助理教授黃承彬表示，我國通信業者可以直接跳過六百億赫茲，在一千億赫茲做好技術布局，把戰場拉到「下下世代」。他透露，研究團隊可望在今年暑假將載波頻率拓展到一兆赫茲，把傳輸速率提升到每秒一千億位元以上，提升通信業競爭力。
Human Audio Tabla SB Interface
The development at Human Audio turns to PC-based listening as well. At end of this way one new device has born: "Tabla" which was the missing link from the people who wants to listen music from the PC on the higest level. With this new device we're able to connect our existing audiophile / high-end DAC (or the next generation "Libretto HD" CDP) with the PC in order to listening audio streams up to 24bit/192kHz. Tabla needs only one free USB 2.0 port on the PC and the output is a coaxial digital (BNC or RCA) for the DAC direction. Based on the Human Audio philisophy this device is purely battery powered with the built in two pieces high-grade Lithium-Iron-Phosphate (LiFeSO4) cells. The charging is fully automatic without any external device since the Tabla could use the USB power for charging purpose at idle times. The Tabla can provide ultimate audio performance through the totally independent smooth battery powering, ultra-low jitter circuits, specialized pulse transformer and of course with one of the best USB-Audio algorithm on the market. (Mac OS and Windows based PC's are supported)
http://www.human-audio.com/images/te...abla/news1.jpghttp://www.human-audio.com/images/te...abla/news2.jpg
McAUDI MD3300
発売日 2011年4月20日
価格 ￥291,900（税込）
http://www.mcaudi.co.jp/product/md3300/md3300.html
http://www.mcaudi.co.jp/product/md33...3300_title.jpg
http://www.mcaudi.co.jp/product/md3300/md3300.html
Abbingdon Music Research's new DP-77 [$4.995]
Abbingdon Music Research's new DP-77 [$4.995] with its Gemini Digital Engine allows selection between a 16-bit non-oversampling chip and a 32-bit chip for a 'best of both worlds' approach between legacy Redbook CD and PC-audio high-resolution files. The 24/192 USB input is asynchronous and there are minimum-phase apodizing reconstruction filters to minimize pre-ringing. The DAC's 'global master timing' clock is adaptive to avoid stepped matching to incoming sampling frequencies. Instead it scans continuously between 28.000.000 discrete frequencies to mirror the incoming data rate perfectly.
Four of the nine digital inputs work through a tube buffer and in preamp mode the DP-77 offers 71-step analog volume control with a resistor array.
不知像這個圖片右方兩個輸入~~
Balanced Input
Unbalanced Input
這要做什麼用的???(sweat):O
http://www.gracedesign.com/products/..._rearpanel.jpg
當前級用囉:*:*:*引用:
作者: 小佐
soga~~~~~~~~:*:P(blush)
我是不了解這台機子.....不過有輸入也有可能Analogue to Digital的功能。
引用:
作者: AndyChu
A/D現在很少了:O:O:O
光纖頭 下載40GB藍光光碟秒殺
- <LI class=ui>2011-04-28 <LI class=ui>中國時報
- 【李宗祐／台北報導】
電腦、手機、電視和隨身碟等資通訊和消費性電子產品訊號傳輸及連結，進入移光「換」影的新世代。中央大學和交通大學跨校研究團隊以光纖取代銅線傳輸訊號，成功研發出全球速度最快的「矽微型化光學連結晶片組」，僅須「瞬間一秒」就可傳輸下載容量達四十ＧＢ（四百億位元）藍光光碟。
現有電腦和手機等資通訊產品互相連結的ＵＳＢ（通用序列匯流排）連接頭傳輸速率約○．五ＧＢ，「矽微型化光學連結晶片組」則提升到八十倍，晶片組成的光纖頭比姆指還小，長寬各僅○．五公分，是全球最精巧的光纖晶片組。
依研究團隊測試速度，未來應用各項資通訊產品，在ＵＳＢ完成連結瞬間，資料隨即以「秒殺」速率傳輸下載。
中央大學光電科學與工程學系副教授伍茂仁形容，「我們讓傳統ＵＳＢ接頭傳輸速率從飛機邁入噴射機階段！」研發成果已陸續獲日、美、歐盟和中國大陸等多項專利。目前全球ＵＳＢ接頭每年市場需求達廿五億個，以每個三到四美元計算，產值近百億美元，這項研發成果可望成為我國資通訊產業邁向光子新世代的祕密武器。
經濟部技術處科技專家詹文鑫指出，最大突破是把現有資通訊產品以銅線傳輸改為光子傳輸，傳輸速率加快，也解決電路基板銅線排列越來越密造成的干擾問題。面對全球激烈競爭，我國研究團聚站在最前緣的領先地位。
研究團隊估計，兩、三年內，電腦、手機和隨身碟等資通訊產品就能普遍使用光纖頭連結及傳輸訊號，邁向「秒殺」世代。
小叶，你好！
以前拜读过您关于audionet家访，印象很深。
关于数码音源，我一直认为将来也是必然的趋势。
我觉得用IMAC做为讯源接入MAP1 （火线接口）会是一种比较好的做法？不知您怎么看？
另外这部CHORD DSC 900 您了解吗？
呵，不是未來趨勢，已經是進行式了....
MAP1有火線輸入喔？應該是自己的資料傳輸(如VIP)，不能用MAC吧....是不一樣的
CHORD DSC 900 我不瞭解喔.....應該是早期的產品
引用:
作者: 小葉
那个火线应该是audiolink自身输入的左边那个。可惜我无法上图。
那個火線是自家用的，跟一般Firewire功用不同
這台有USB Audio
小弟有去參加這個發表會, 但這報導說法有誤..該模組傳輸速率40Gbps沒辦法一秒傳完40GB
未來是真的很有可能把光收發模組整合到cable裡, 且看新一代的USB, HDMI或Thunderbolt會如何發展吧
引用:
作者: 小葉
